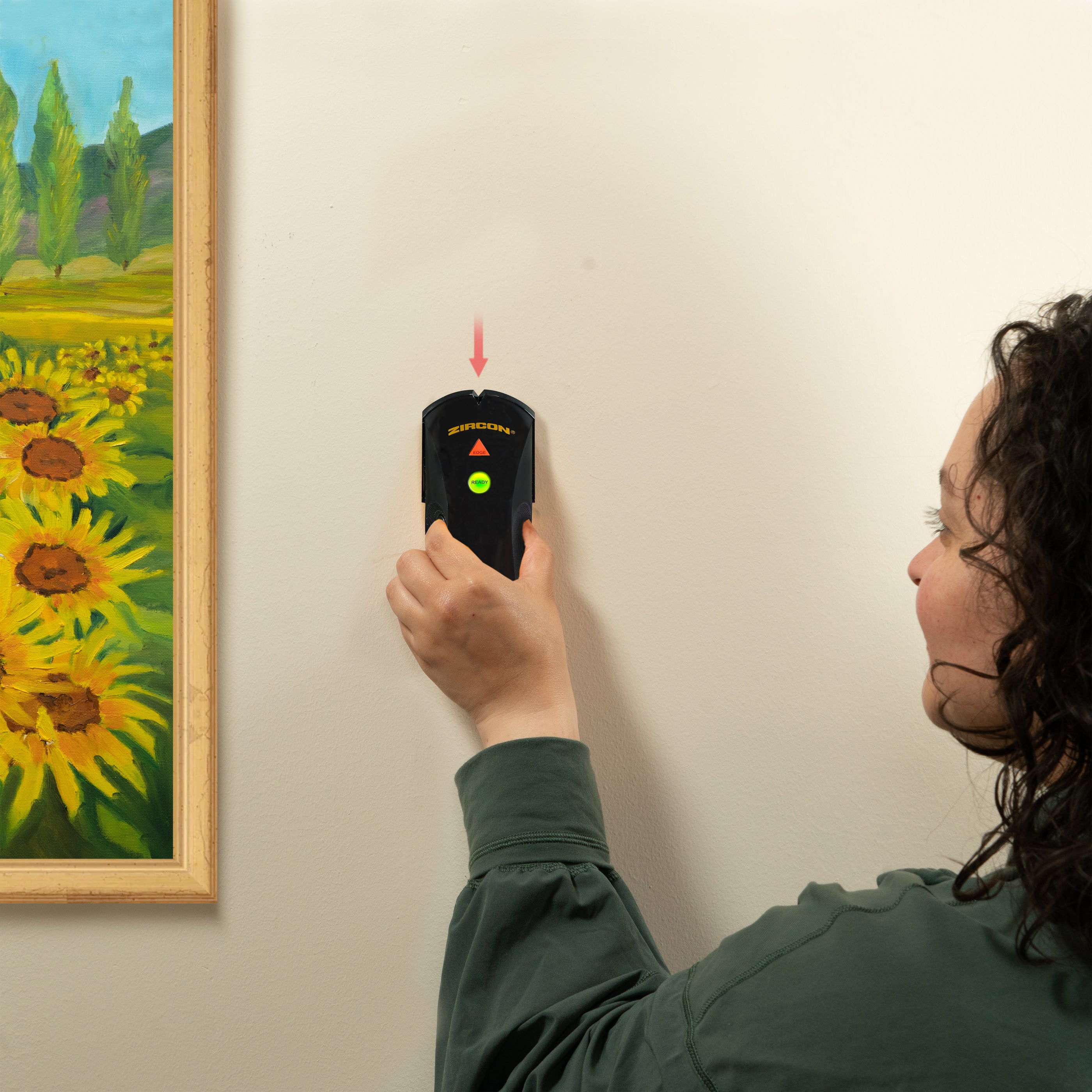

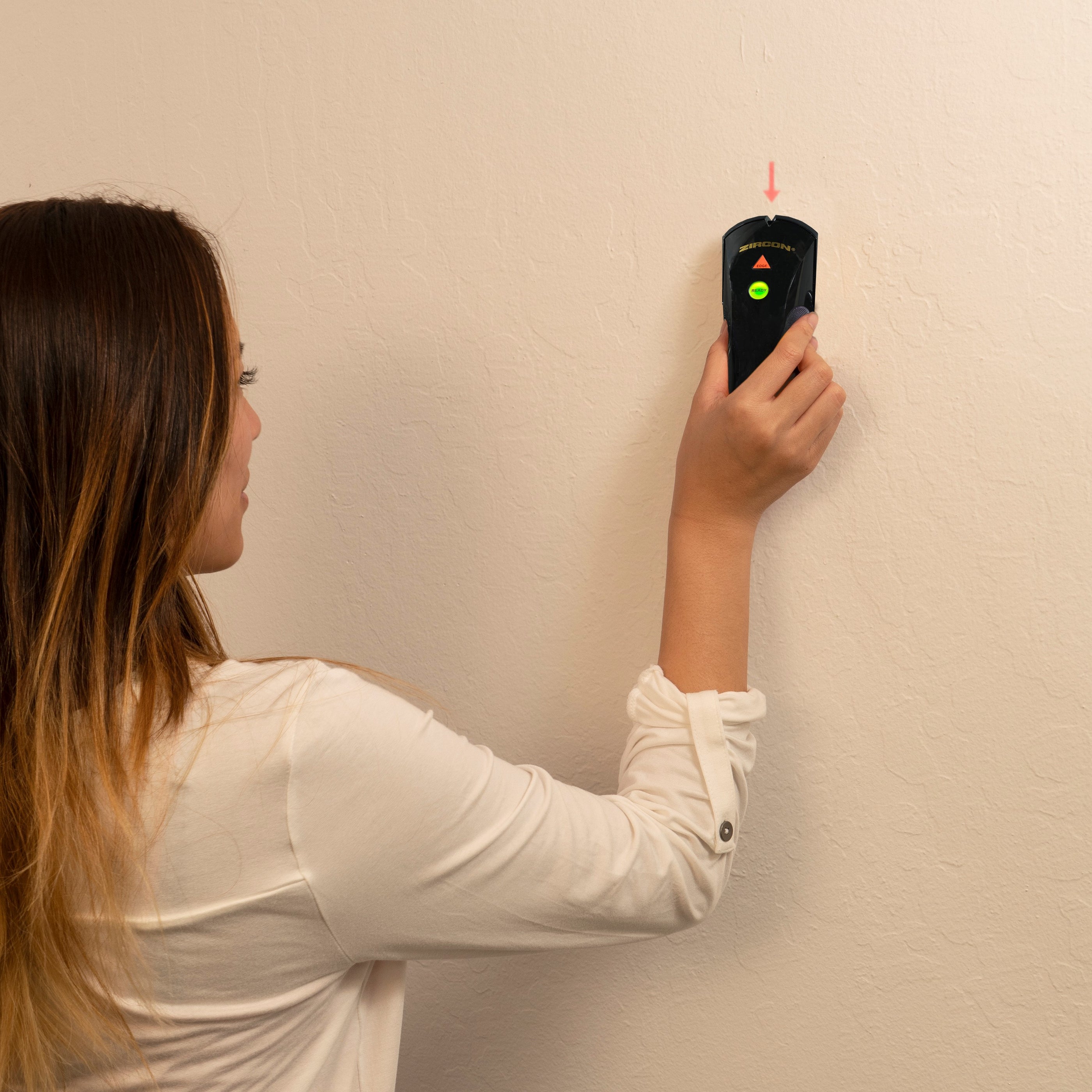

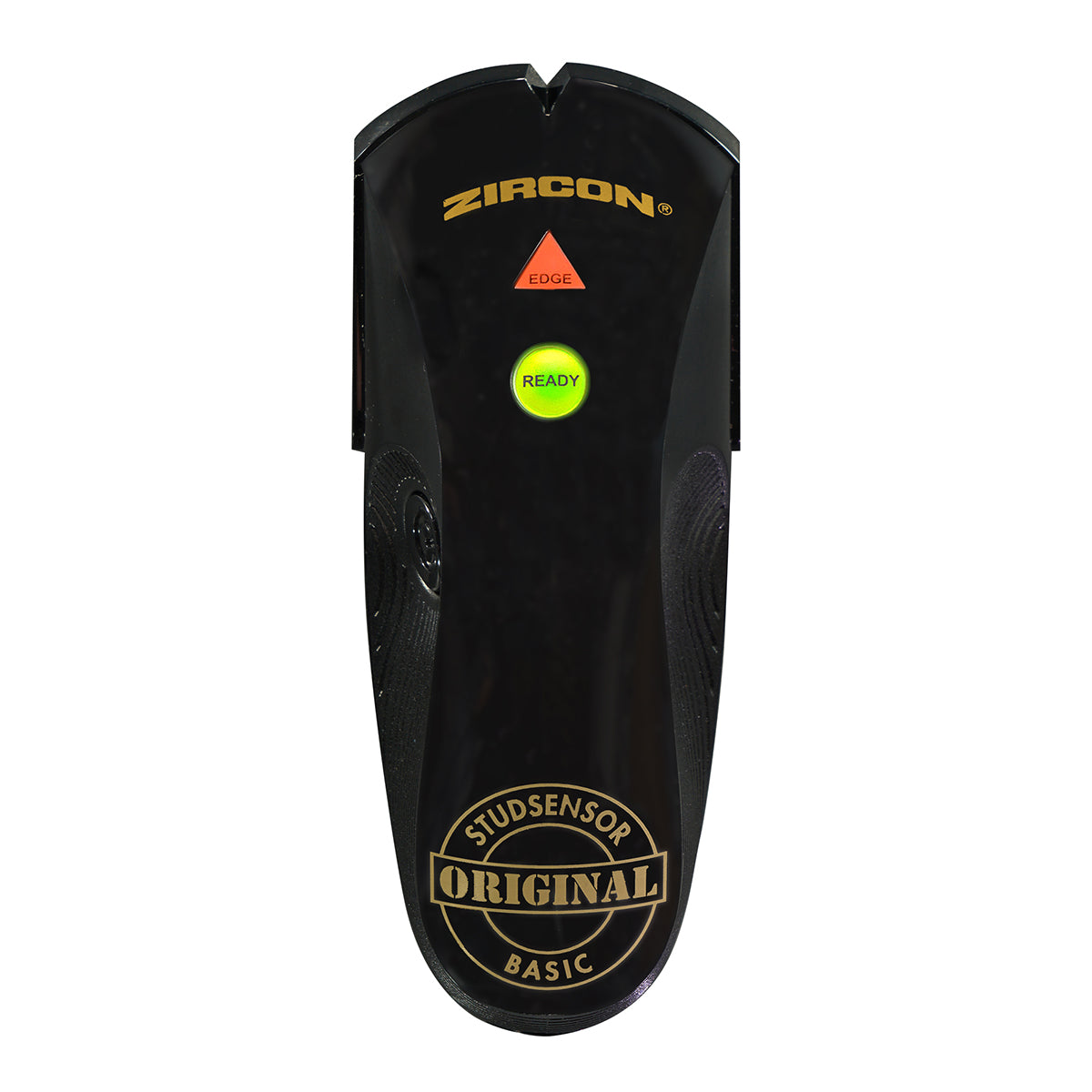

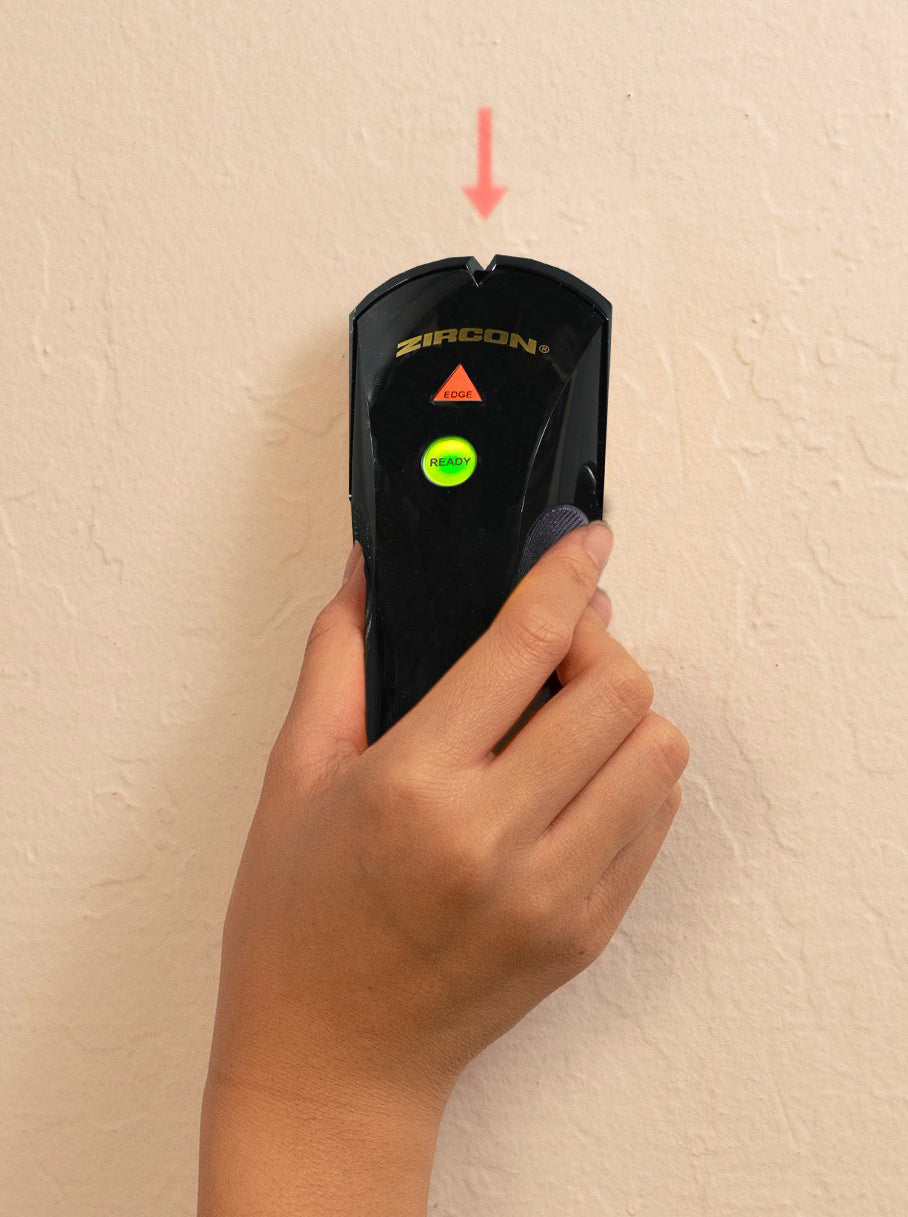

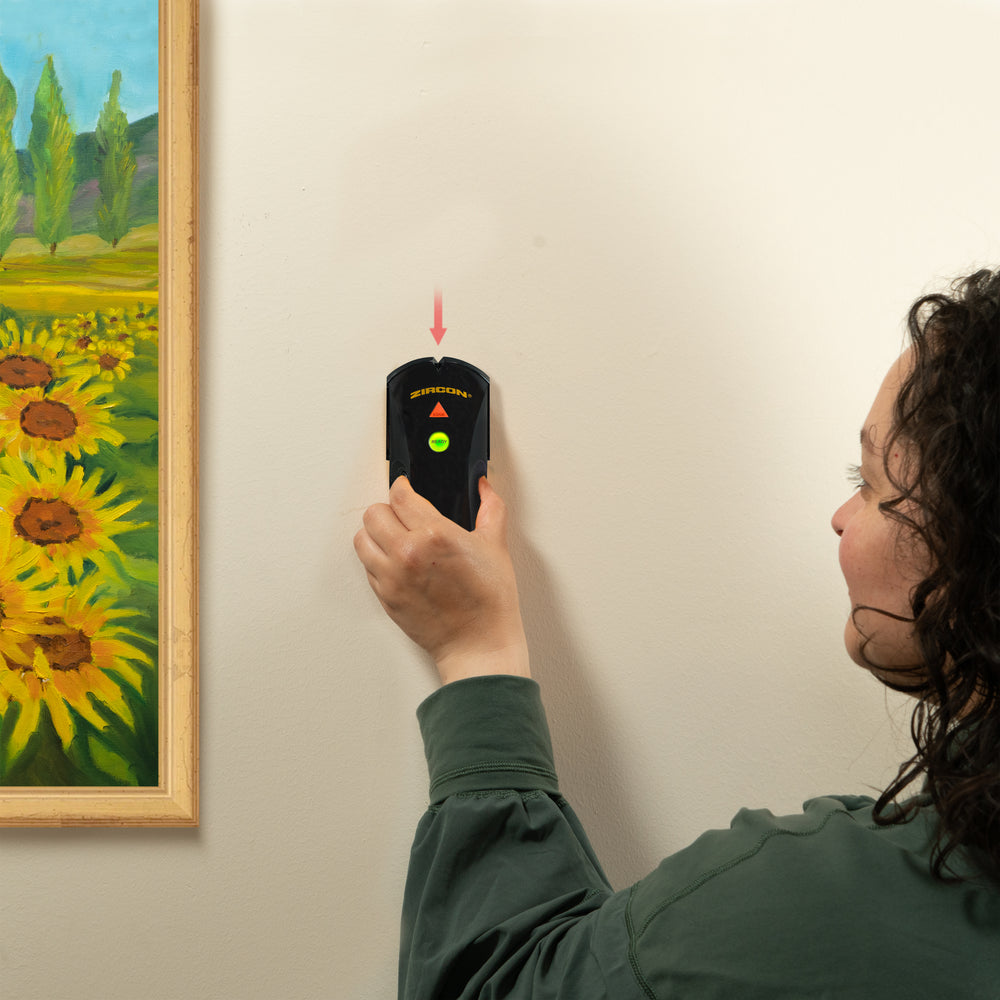

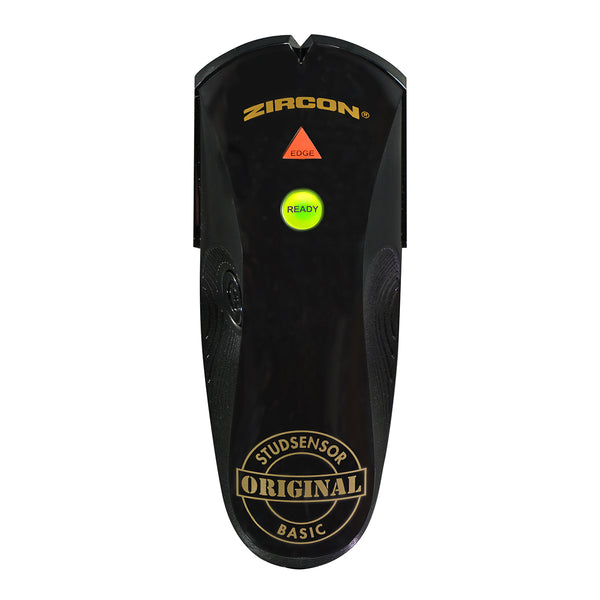

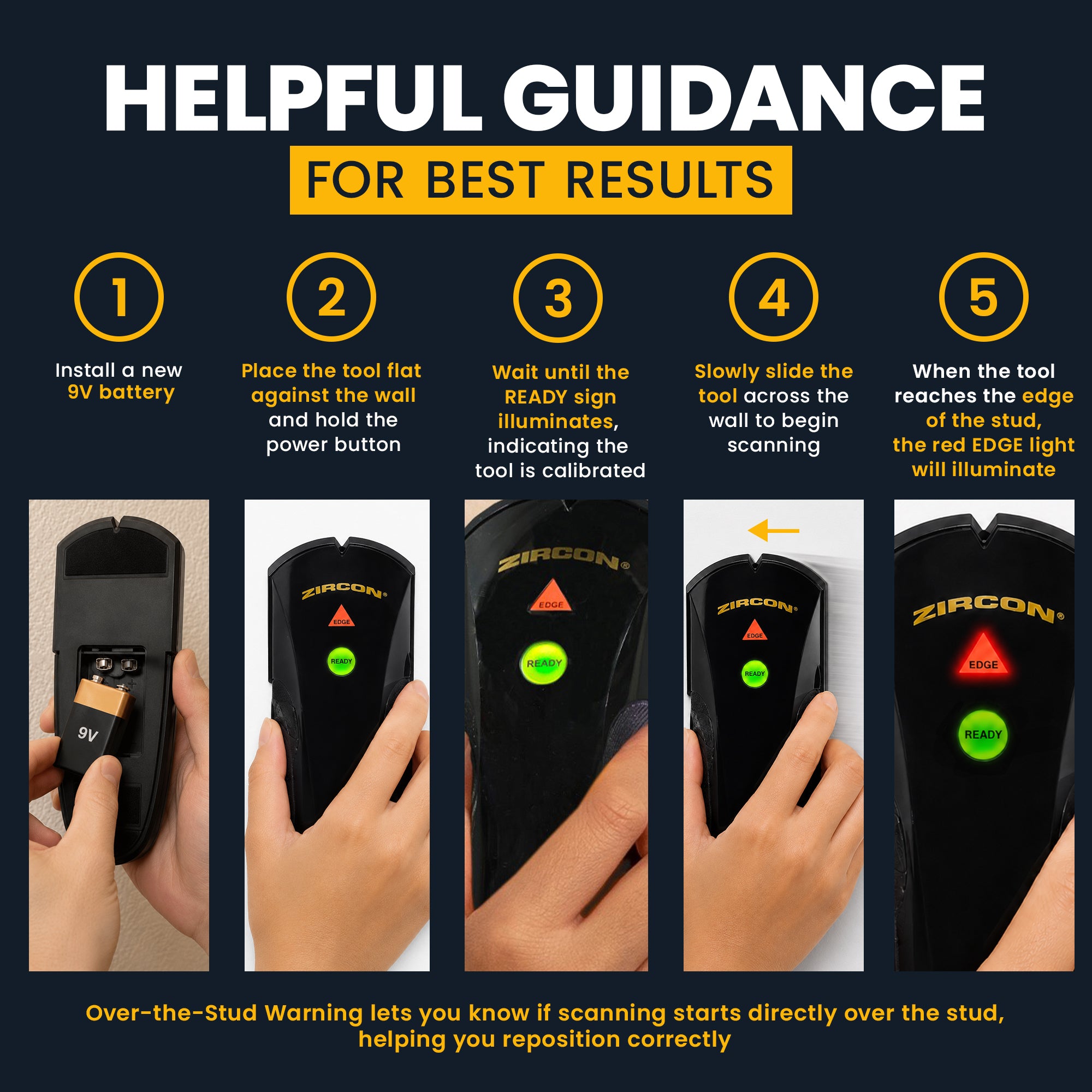

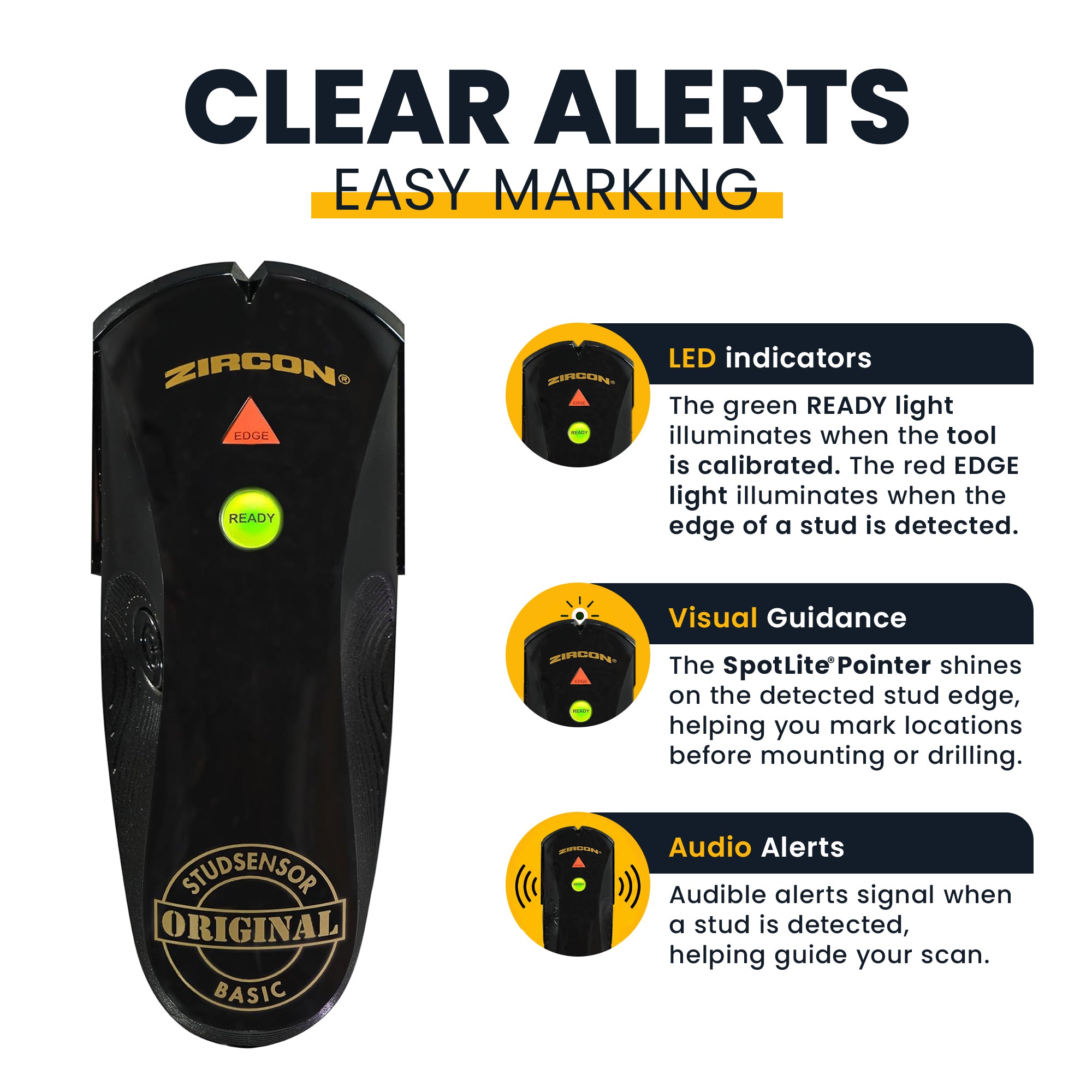

• LED edge indicators and audible alert clearly signal when the stud edge is reached, with red LEDs during approach and a green LED at detection.
• SpotLite beam projection shines directly on the wall at the stud edge, making marking fast and accurate for drilling or mounting.

Dimensions

• 135 mm x 54 mm x 35 mm

Weight

• 54 g without battery

Battery Type

• 9V alkaline (not included)

Position Accuracy*

• Wood studs: Typically within 3 mm using the dual scan and mark procedure
• Metal studs: Typically within 13 mm using the dual scan and mark procedure

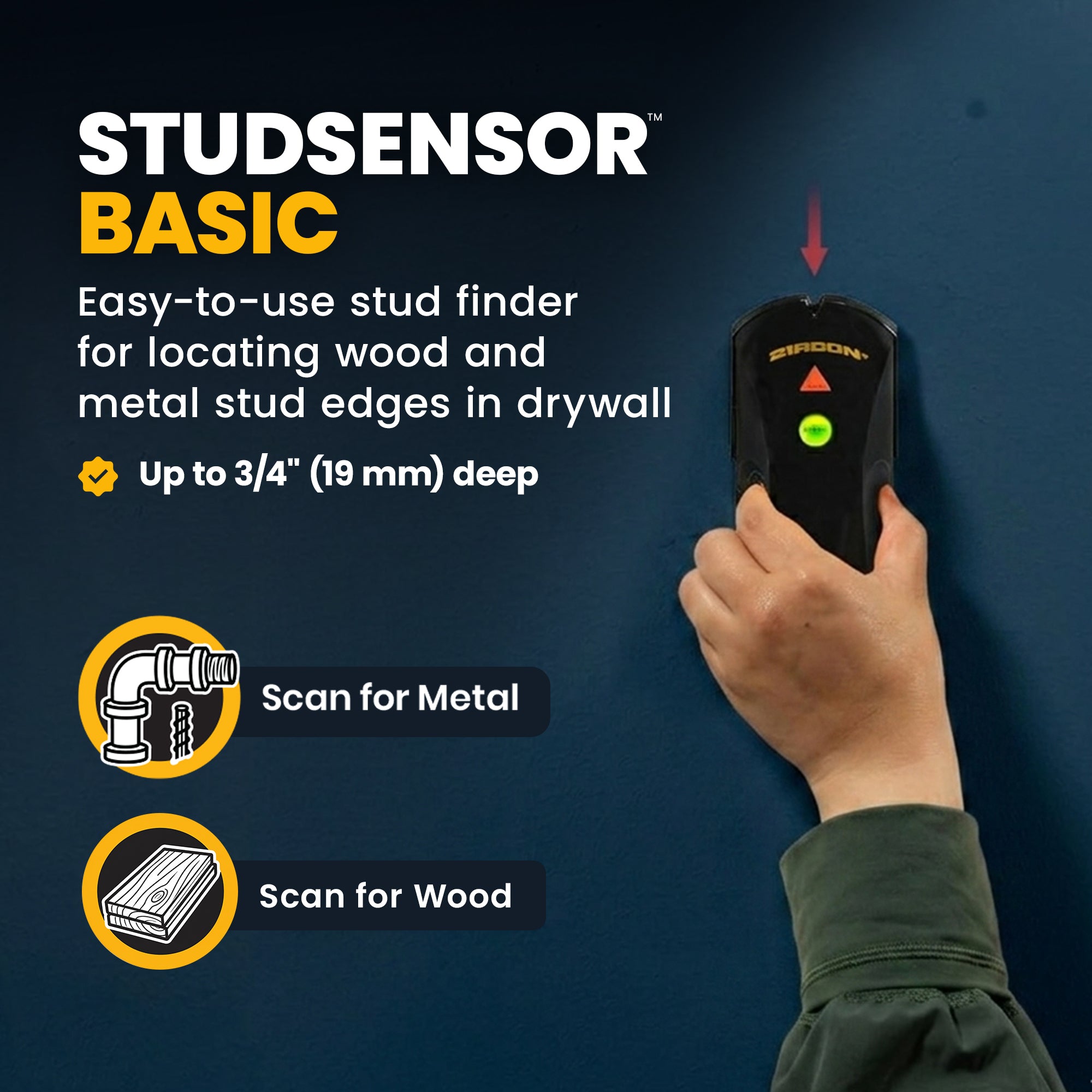

Depth*

• Typically up to 19 mm

Operating Temperature

• 4° to 49°C

Storage Temperature

• -7° to 60°C

Humidity

• 5-95% RH (non-condensing)

*NOTE: USE ONLY IN ACCORDANCE WITH STUDSENSOR™ BASIC INSTRUCTIONS. Sensing depth and accuracy can vary due to moisture, content of materials, wall texture, paint, etc. Not recommended for use on lath and plaster.
Indoor use only.

This product is covered by Zircon’s Limited Lifetime Warranty for the United States and Canada.
