StudSensor™ e30

locates the edges of wood and metal studs behind walls.

$23.99
Compare this product Select more
DESCRIPTION

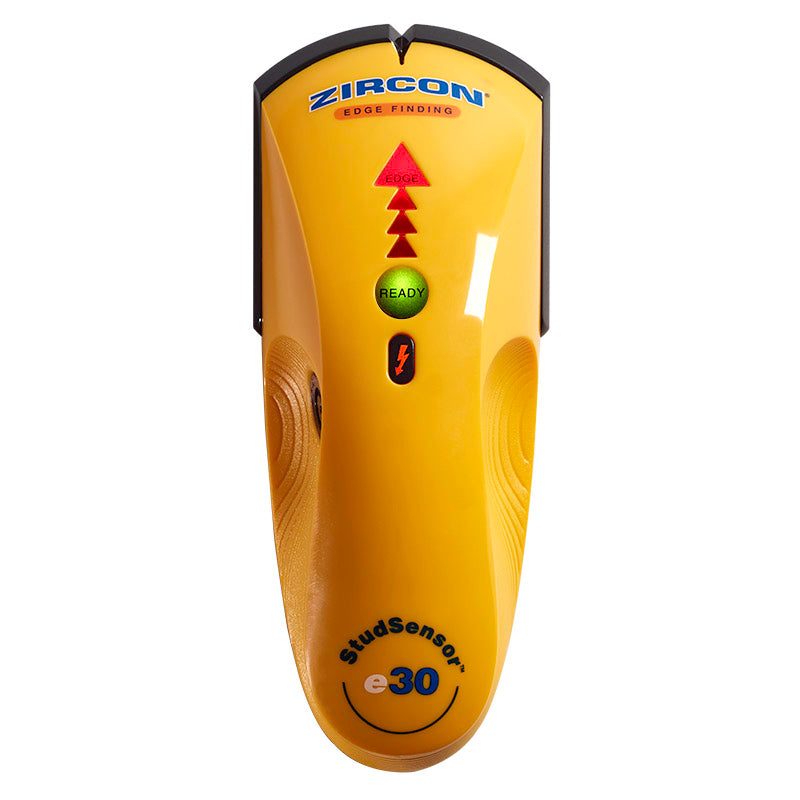

The StudSensor™ e30 stud finder locates the edges of wood and metal studs behind walls. User-friendly interface and patented SpotLite® Pointer clearly identify the target while WireWarning® detection indicates the presence of live AC voltage. Patented pivot pinch grip and contoured shape provide an easy, secure hold in either hand, at any angle.

  • Finds the edges of wood or metal studs up to 3/4 in. (19 mm) deep
  • “Ready” light indicates when calibration has completed successfully
  • Red arrows light up sequentially as the stud finder nears a target
  • “Edge” light indicates when the tool is over a stud edge
  • Patented SpotLite® Pointer shines an arrow-shaped light on the wall to mark the target
  • WireWarning® detection indicates the presence of live, unshielded electrical wiring up to 2 in. (50 mm) deep
  • Zircon’s patented “over-the-stud” indication alerts user to start the scan in a new location if scanning begins over a stud
FEATURES

• Locates the edges of wood or metal studs

up to ¾ inch (19 mm) deep

• New "Ready" light indicates when calibration has completed successfully

• Red arrows light up sequentially as the stud finder nears a target

• New "Edge" light indicates when the tool is over a stud edge

• Updated SpotLite® Pointer shines an arrowshaped light on the wall to mark the target

• WireWarning® detection indicates the presence of live, unshielded electrical wiring up to 2 inches (51 mm) deep

• Should scanning begin over a stud, Zircon's patented "over-the-stud" indication alerts the user to start the scan in a new location

• Patented TruCal® technology indicates when the tool is calibrated and ready

SPECIFICATIONS
  • Battery Type 9V alkaline (not included)
  • Dimensions 6.03 in. H x 2.39 in. W x 1.58 in. D (153 mm x 61 mm x 40 mm)
  • Weight 3.0 oz. (84.5 g) without battery

Position Accuracy*

  • Wood studs: Typically within 1⁄8 in. (3 mm) using the dual scan and mark procedure
  • Metal studs: Typically within 1⁄2 in. (13 mm) using the dual scan and mark procedure
  • WireWarning® Position Accuracy* Typically 90-250 V at 50-60 Hz within 6 in. (152 mm) of a hot unshielded wire in drywall
  • WireWarning® In typical wall with Romex® wiring

Depth* wire can be detected up to 2 in. (51 mm) deep

Operating 20° to 105°F (-7° to 41°C)

Splash and water resistant, not waterproof

*NOTE: See tool's instructions for more information. Sensing depth and accuracy can vary due to moisture, content of materials, wall texture, paint, etc.

Indoor use only

USER GUIDE
WARRANTY

This product is covered by Zircon’s Limited Lifetime Warranty for the United States and Canada.


For more details on our warranty, please visit our Warranty page.
