• StudScan mode locates the edges of wood or metal studs up to ¾ inch (19 mm) deep
• DeepScan® mode doubles the scanning depth to 1½ inches (38 mm)

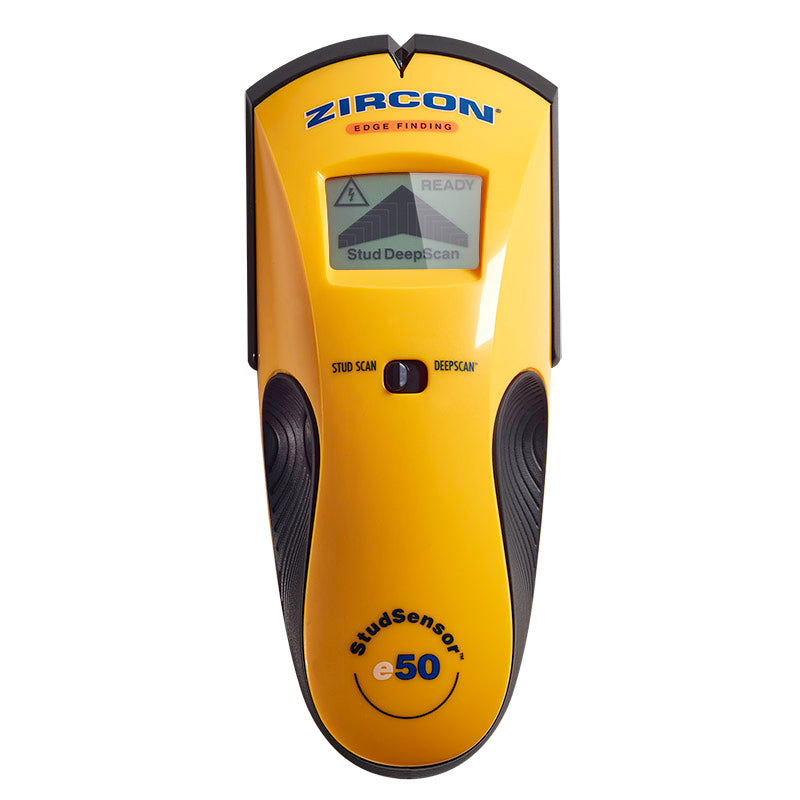

• Easy-to-read LCD display indicates when a stud edge is approached
• Updated SpotLite® Pointer shines an arrowshaped light on the wall to mark the target
• WireWarning® detection indicates the presence of live, unshielded electrical wiring up to 2 inches (51 mm) deep

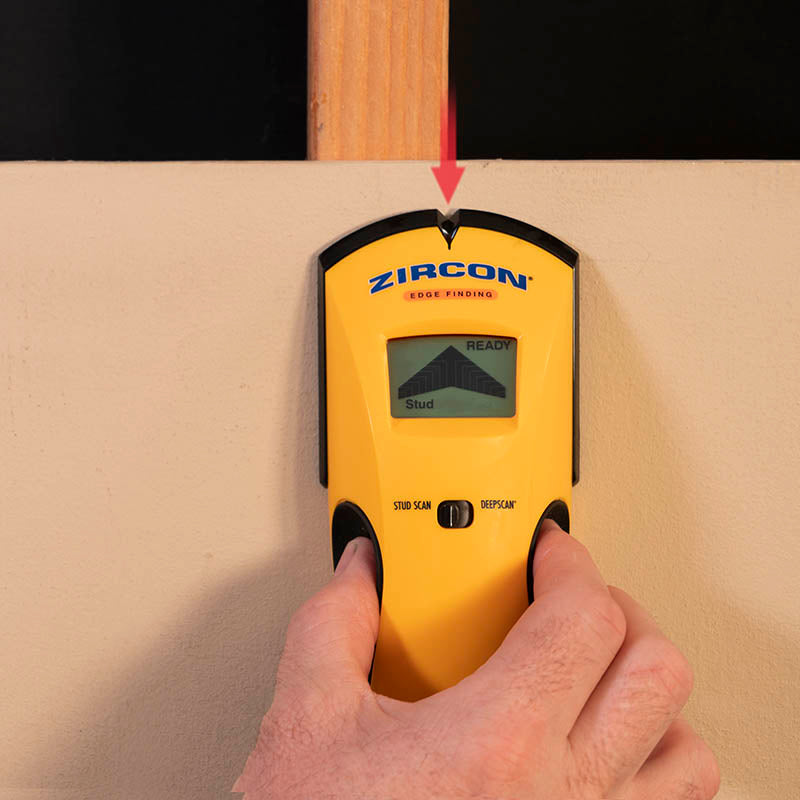

• Should scanning begin over a stud, Zircon's patented "over-the-stud" indication alerts the user to start the scan in a new location
• Patented TruCal® technology indicates when the tool is calibrated and ready

• Battery Type 9V alkaline (not included)
• Dimensions 6.66 in. H x 2.80 in. W x 1.69 in. D(169 mm x 71 mm x 43 mm)
• Weight 4.3 oz. (122.6 g) without battery

Position Accuracy*

• Up to a depth of ¾ in. (19 mm):Typically within ¹⁄₈ in. (3 mm) using the dual scan and mark procedure
• Up to a depth of 1½ in. (38 mm): Typically within ³⁄₁₆ in. (5 mm) using the dual scan and mark procedure

Depth*

• StudScan mode: Up to ¾ in. (19 mm)
• DeepScan® mode: Up to 1½ in. (38 mm)

WireWarning® Position Accuracy*

• Typically 90-250 V at 50-60 Hz within 6 in. (152 mm) of a hot unshielded wire in drywall
• WireWarning® Depth In typical wall with Romex™ wiring, wire can be detected up to 2 in. (51 mm) deep

Splash and water resistant, not waterproof

*NOTE: See tool's instructions for more information. Sensing depth and accuracy can vary due to moisture, content of materials, wall texture, paint, etc.

Indoor use only

This product is covered by Zircon’s Limited Lifetime Warranty for the United States and Canada.
