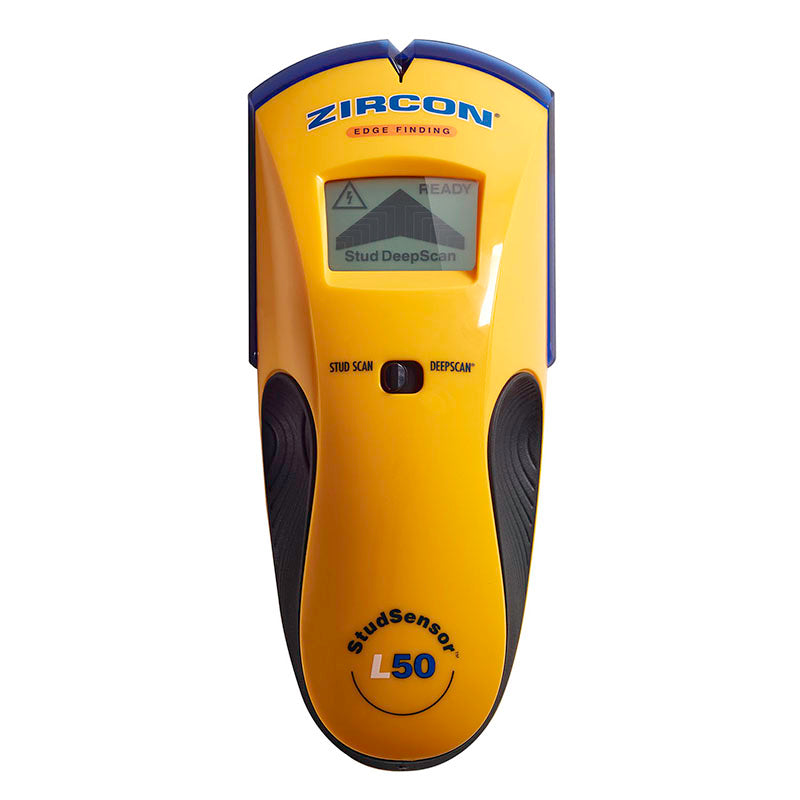

The StudSensor™ L50 stud finder locates the edges of wood and metal studs and joists behind walls, floors, and ceilings. Its easy-to-read display screen indicates stud edges, SpotLite® Pointer shines a beam of light on the wall to clearly identify the target, and WireWarning® detection indicates the presence of live AC voltage. Its patented pivot pinch grip and contoured shape provide an easy, secure hold in either hand, at any angle.

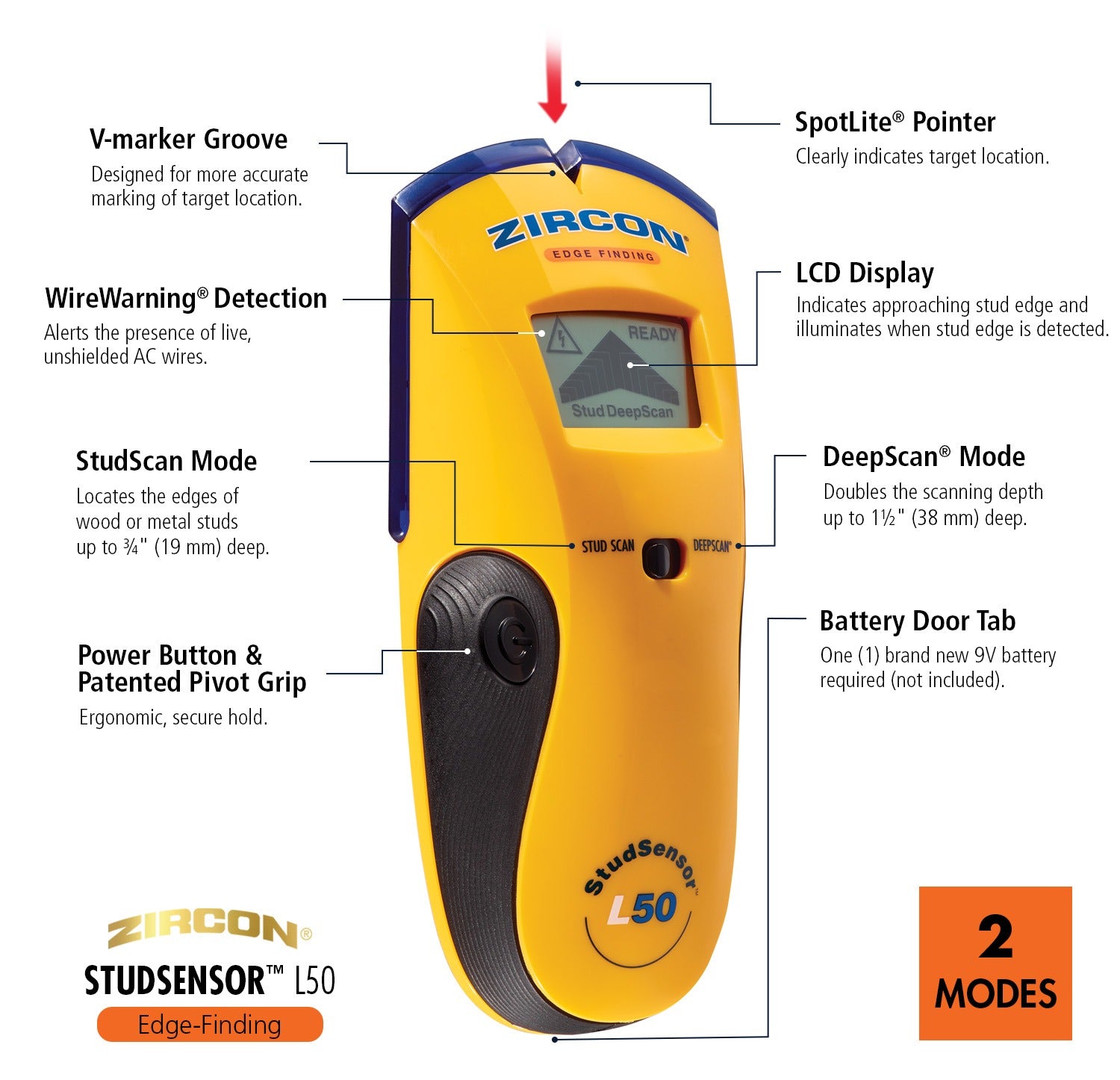

Key Features

• StudScan mode locates the edges of wood or metal studs up to ¾ in. (19 mm) deep
• DeepScan® mode doubles the scanning depth to 1 ½ in. (38 mm)
• READY icon displays when calibration has completed successfully
• Easy-to-read LCD display indicates when a stud edge is approached
• Zircon’s patented “over-the-stud” indication alerts user to start the scan in a new location if scanning begins over a stud
• WireWarning® detection indicates the presence of live, unshielded electrical wiring up to 2 in. (50 mm) deep
• SpotLite® Pointer shines an arrow-shaped light on the wall to clearly indicate the edge of the stud
• Patented pivot pinch grip for a comfortable, secure hold in either hand, at any angle
• “V” marker groove for more accurate marking of stud edge location

Instructions

For more details on our warranty, please visit our Warranty page.
