Breaker ID Circuit Finder

Breaker ID finds the right circuit breaker every time.

$49.99
Compare this product Select more
DESCRIPTION

With the Breaker ID, you don’t have to shut off power to the entire house, or go through trial-and-error, accidentally shutting off things you don’t want to. A vital tool for both homeowners and contractors, the Breaker ID finds the right circuit breaker every time.

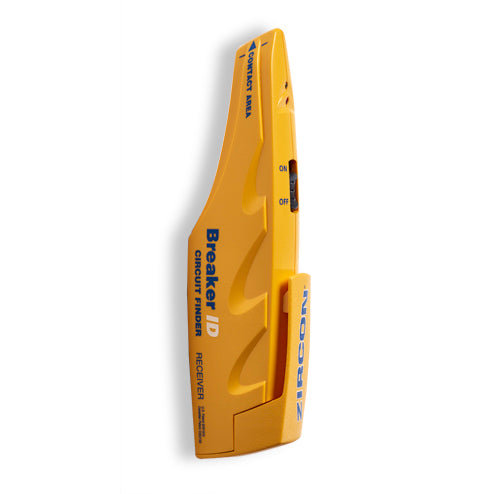

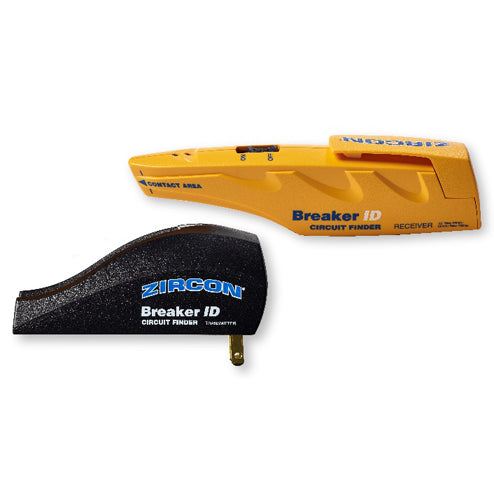

The Breaker ID has two parts: a Transmitter that plugs into a circuit via a standard outlet, and sends a signal down the wire connecting that circuit, and a Receiver wand which is used to scan the circuit breaker panel.

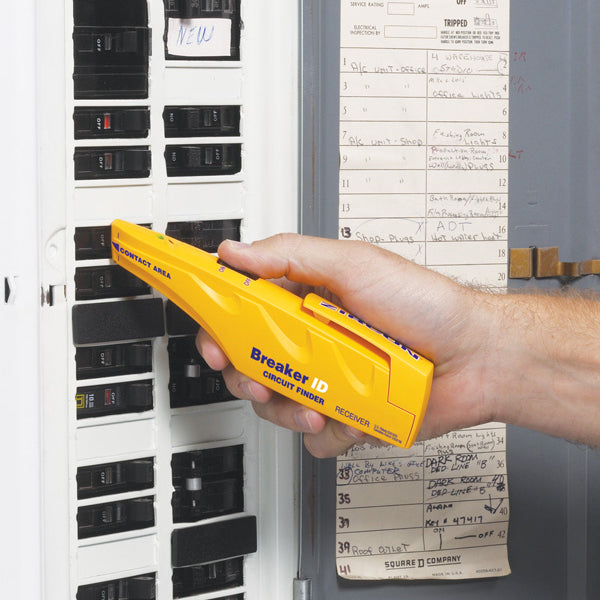

Simply plug the Transmitter into an electrical outlet and then scan your circuit breaker panel twice to identify which breaker operates that outlet. During the first scan, the Breaker ID may indicate more than one breaker as it memorizes each circuit. On the second scan, the Breaker ID will identify the correct circuit breaker with a green LED light and audio tone.

FEATURES

• Easy 1-person operation
• Scan for easy identification and labeling of all breakers
• Find breakers faster and more efficiently with no accidental shutoffs
• Automatic calibration
• Lights and audio indicate circuit location

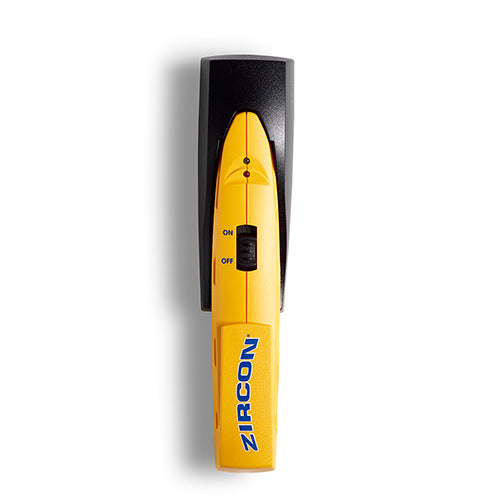

• Transmitter and Receiver snap together for storage

NOTE: Do not exceed 120 V AC.

SPECIFICATIONS
  • Battery Type: 9V alkaline
  • Dimensions Receiver: 7.0 in. L x 1.87 in. H x 1.31 in. W (178 mm x 48 mm x 33 mm)
  • Transmitter: 5.0 in. L x 2.11 in. H x 1.83 in. W (127 mm x 54 mm x 46 mm)
  • Weight Receiver: 2.75 oz. (78 g) without battery
  • Transmitter: 2.82 oz. (80 g)
  • Power Receiver: 9V transistor type
  • Transmitter: 110-120 V AC, 3 W max, folding 2-prong AC plug
  • Operating Temperature: 20°F to 104°F (-7°C to 40°C)
  • Storage Temperature: -20°F to 150°F (-29°C to 66°C)
  • Humidity 5-90% RH (non-condensing)
  • Water Resistance Splash resistant, not waterproof
  • Compliance Certifications: UL, CUL, FCC

*NOTE: USE ONLY IN ACCORDANCE WITH BREAKER ID INSTRUCTIONS.

USER GUIDE
WARRANTY

This product is covered by Zircon’s Limited Lifetime Warranty for the United States and Canada.


For more details on our warranty, please visit our Warranty page.

Breaker ID Circuit Finder
Breaker ID Circuit Finder

Frequently Compared With



CURRENTLY VIEWING

Breaker ID Circuit Finder

Breaker ID Circuit Finder

Breaker ID finds the right circuit breaker every time.

$49.99



Breaker ID Pro 300

Breaker ID Pro 300

Breaker ID Pro 300 finds the right circuit breaker every time.

$159.99



Breaker ID Pro 600

Breaker ID Pro 600

Breaker ID Pro 600 finds the right circuit breaker every time.

$269.99

Breaker ID
Breaker ID
Yes
Breaker ID
Yes
Breaker ID
Yes
Receiver
Receiver
Yes
Receiver
Yes
Receiver
Yes
Transmitter
Transmitter
Yes
Transmitter
Yes
Transmitter
Yes
Range
Range
110–120 V AC
Range
80 - 300 V AC
Range
80 - 600 V AC
120 V AC Plug Adapter
120 V AC Plug Adapter
-
120 V AC Plug Adapter
Yes
120 V AC Plug Adapter
Yes
1000 V Rated Alligator Clips
1000 V Rated Alligator Clips
-
1000 V Rated Alligator Clips
Yes
1000 V Rated Alligator Clips
Yes
Assorted Blades
Assorted Blades
-
Assorted Blades
Yes
Assorted Blades
Yes
Light Socket Adapter
Light Socket Adapter
-
Light Socket Adapter
Yes
Light Socket Adapter
Yes
