Name: MetalliScanner® m40
Brand: Zircon
SKU: 62518
Price: 49.99 USD
Availability: InStock

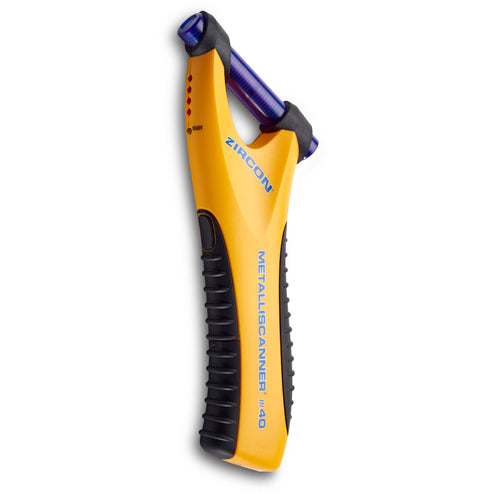

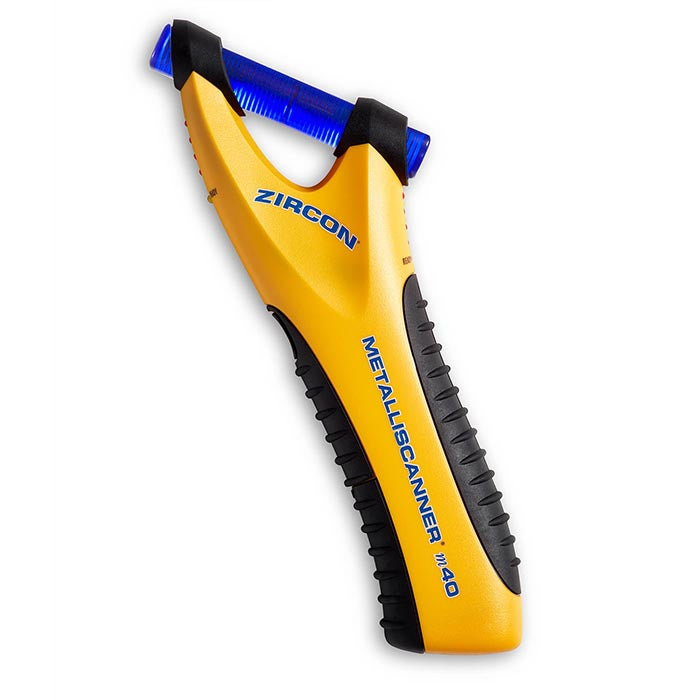

MetalliScanner® m40

Easily detects metal in wood, drywall, tile and other non-metallic surfaces.

$49.99

Compare this product

Select more

Metal Scan

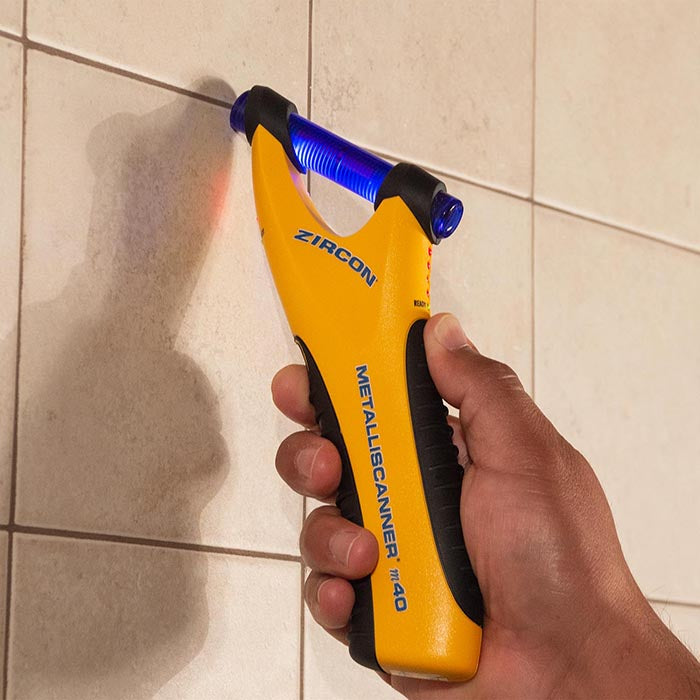

MetalliScanner® m40 quickly and easily detects metal in wood, drywall, paneling, tile, plaster, concrete, and other non-metallic surfaces. It locates ferrous (magnetic) metal up to 4 inches (10 cm) deep and non-ferrous (non-magnetic) metal up to 2 inches (5 cm) deep.

The m40 solves the problem of finding studs in lath and plaster walls, that do not contain metal mesh, by finding the pattern of nails that attach the wood lath to the studs. MetalliScanner® m40 finds plumbing, ductwork, rebar, nails, and screws in your walls, floors, and ceilings, and is great for scanning reclaimed lumber for hidden metal.

The m40 features two scanning positions, each with a progressive LED display. As it approaches a metal object, the red LEDs progressively light from the bottom up. The top lighted blue coil and an audio tone indicate when a metal target is located.

Use Pinpoint Scan to locate small metal objects such as screws and nails
Use Wide Scan to detect metal in walls or concrete
LED arrays indicate signal strength

Battery Type 9V alkaline (not included)
Dimensions 7.65 in. L x 4.71 in. W x 0.98 in. H (194 mm x 120 mm x 25 mm)
Weight 3.9 oz (111 g) without battery

Depth* (First Light)

½ in. Rebar: 4 in. (102 mm)
½ in. Copper pipe: 2 in. (51 mm)

Splash and water resistant, not waterproof

*NOTE: Sensing depth and accuracy can vary depending on scanning environment conditions such as mineral contents, moisture, texture and consistency of the wall materials.
