Name: MetalliScanner® MT X
Brand: Zircon
SKU: 68572
Price: 249.99 USD
Availability: InStock

MetalliScanner® MT X

A favorite scanner for concrete projects to find metal in construction.

$249.99

Compare this product

Select more

Metal Scan

In-Concrete Metal Scan

Backlit LCD

LCD Display

Low Battery Indicator

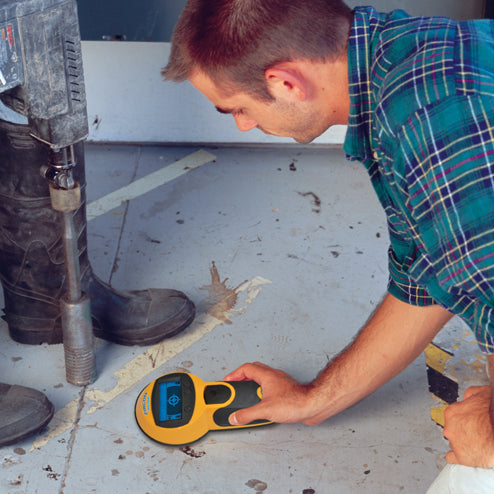

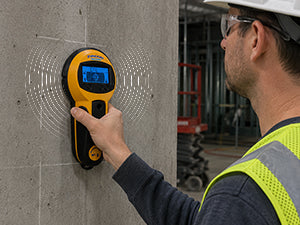

A favorite among concrete projects, the MetalliScanner® MT X metal locator finds metal in standard residential, commercial, and industrial construction. Designed to address the difficult task of locating the spaces between rebar in tight grid patterns before drilling or coring, the MT X often eliminates the need for costly ground penetrating radar (GPR). It works equally well on vertical surfaces.

Calibrated to locate rebar up to 4 in. (10 cm) deep, use to find or avoid rebar in concrete before drilling.

Choose from two scanning modes depending on the environment to be scanned. Normal Scan for shallow rebar placed in tight grid patterns and DeepScan® for deeper pieces of pipe or rebar.

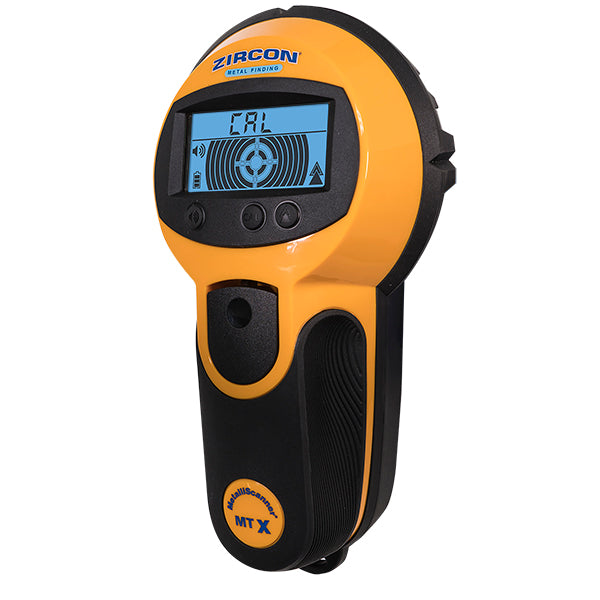

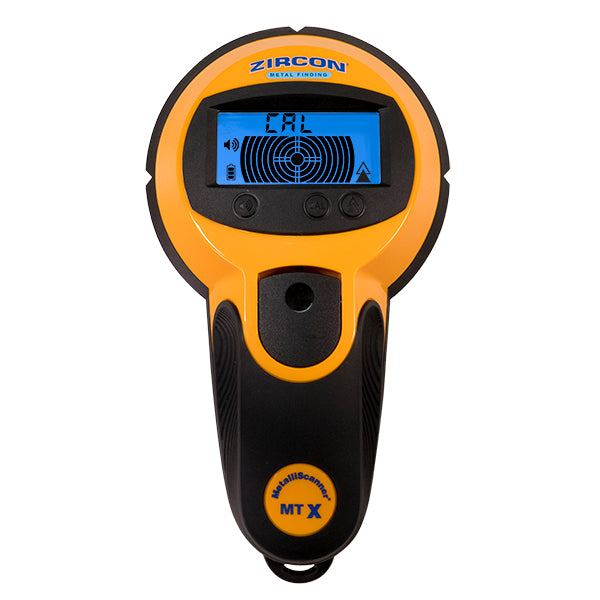

• Large blue transflective backlit LCD screen for easy viewing, even under direct sunlight

• Center and Signal Strength Indication of metal up to 4 in. (10 cm) deep

• Battery Strength Indicator continuously displays the battery level and will flash when the battery level is too low for operation

• Ergonomic handle with Patented Pivot Pinch Grip design

• Integrated marker system to mark target location

• Pivoting handle attachment for easier scanning included

• Water and dust resistant

Battery Type 3 AA Alkaline, required
Dimensions 9.37 in. H x 5.14 in. W x 2.81 in. D (238 mm x 131 mm x 72 mm)
Weight 1 lb. (454 g) without batteries

Position Accuracy*

Center of #4 (½ in. [13 mm]) rebar at a minimum grid spacing of 6 in. (15 cm) typically within ± ½ in. (13 mm)
Depth* Up to 4 in. (10 cm)
Splash and water resistant, not waterproof

*NOTE: USE ONLY IN ACCORDANCE WITH MT X INSTRUCTIONS.

Sensing depth and accuracy can vary depending on scanning environment conditions such as mineral contents, moisture texture and consistency of the wall materials.
