• Stud Scan mode locates the edges of wood or metal studs up to 3/4 in. (19 mm) deep
• DeepScan® mode doubles the scanning depth to 1 1/2 in. (38 mm)
• Red LEDs light up every time a stud edge is approached

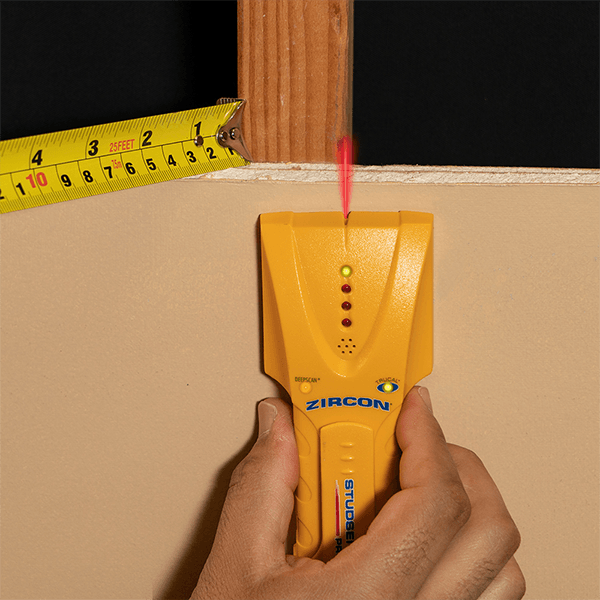

• Patented SpotLite® Pointing System, audio alert, and a green LED signals when the stud edge is reached
• Zircon's patented "over-the-stud" indication alerts user to start the scan in a new location if scanning begins over a stud
• Patented TruCal® technology calibrates to any wall's density and a steady green LED TruCal® light alerts the user when the tool is ready and calibrated
• Battery cover doubles as a belt clip

• Battery Type 9V alkaline (not included)
• Dimensions 5.57 in. H x 2.34 in. W x 1.14 in. D (142 mm x 60 mm x 29 mm)
• Weight 2.4 oz. (67.3 g) without battery
• Splash and water resistant, not waterproof
• Indoor use only


Position Accuracy*

• Up to a depth of ¾ in. (19 mm): Typically within ¹⁄₈ in. (3 mm) using the dual scan and mark procedure
• Up to a depth of 1½ in. (38 mm): Typically within ³⁄₁₆ in. (5 mm) using the dual scan and mark procedure

Depth*

• StudScan mode: Up to ¾ in. (19 mm)
• DeepScan® mode: Up to 1½ in. (38 mm)

*NOTE: See tool's instructions for more information. Sensing depth
and accuracy can vary due to moisture, content of materials, wall
texture, paint, etc.

This product is covered by Zircon’s Limited Lifetime Warranty for the United States and Canada.
