• StudScan Mode locates the edges of wood and metal studs up to 3⁄4 in. (19 mm) deep
• DeepScan® Mode doubles the scanning depth to 11⁄2 in. (38 mm) deep

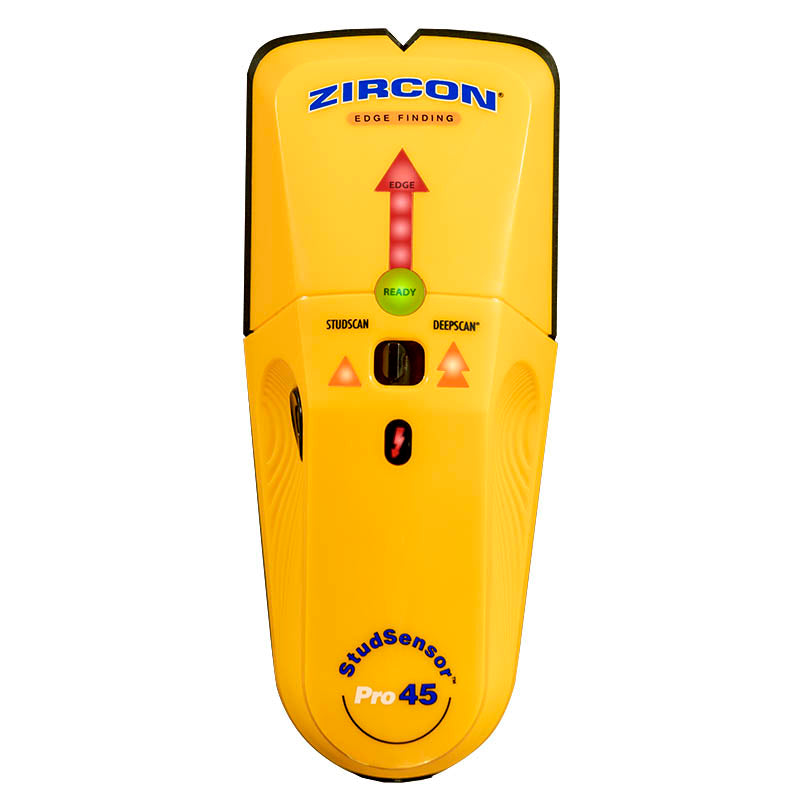

• READY Light indicates when calibration is complete and tool is ready for use
• EDGE Arrow lights up sequentially as the tool approaches a stud and fully illuminates when the stud edge is located
• Zircon’s patented "over-the-stud" feature alerts if scan begins over a stud
• WireWarning® Detection indicates the presence of live
• unshielded AC electrical wiring up to 2 in. (50 mm) deep

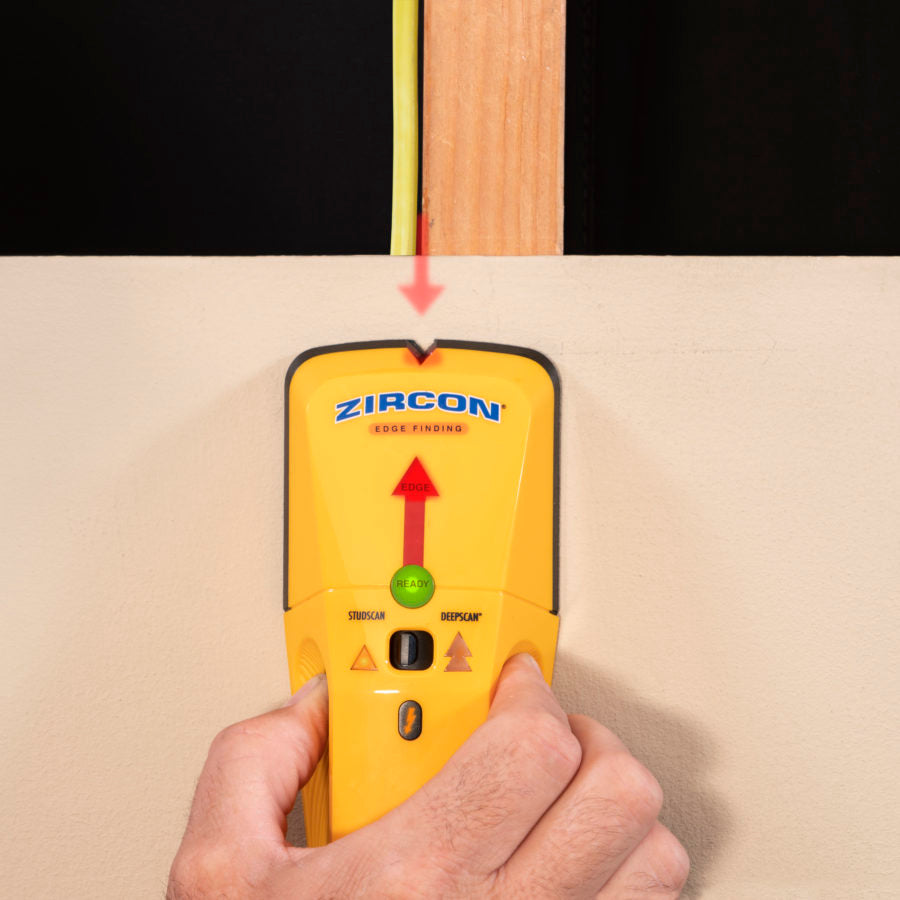

• SpotLite® Pointer shines an arrow-shaped image on the scanned surface to clearly indicate the edge of the stud
• A "V" marker groove enables accurate marking of stud edge location

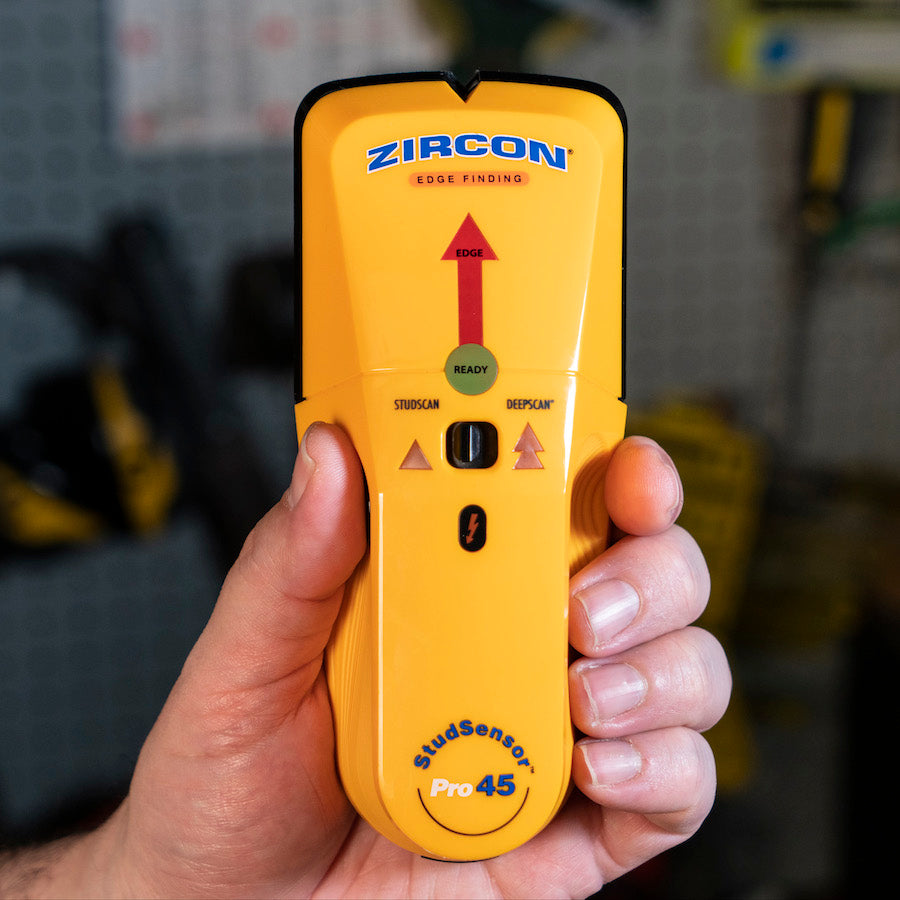

• Ergonomic grip for a secure hold in either hand at any angle

• Battery Type 9V alkaline, required
• Dimensions 6.78 in. H x 2.84 in. W x 1.66 in. D (172 mm x 72 mm x 42 mm)
• Weight 4.4 oz. (125 g) without battery

Depth*

• StudScan mode: Up to ¾ in. (19 mm)
• DeepScan® mode: Up to 1 ½ in. (38 mm)

Position Accuracy*

• Wood studs: Typically within 1⁄8 in. (3 mm) using the dual scan and mark procedure
• Metal studs: Typically within 1⁄2 in. (13 mm) using the dual scan and mark procedure
• WireWarning® Position Accuracy* Typically 90-250 V at 50-60Hz within 6 in. (152 mm) of a hot unshielded wire in drywall
• WireWarning® Depth*In typical wall with Romex® wiring, wire can be detected up to 2 in. (51 mm) deep

Splash and water resistant, not waterproof

*NOTE: USE ONLY IN ACCORDANCE WITH PRO45 INSTRUCTIONS.

Sensing depth and accuracy can vary depending on scanning environment conditions such as mineral contents, moisture, texture and consistency of the wall materials.

Not recommended for use on lath and plaster.

Indoor use only.

This product is covered by Zircon’s Limited Lifetime Warranty for the United States and Canada.
