• Stud Scan mode locates the edges of wood or metal studs up to 3/4 in. (19 mm) deep
• DeepScan® mode doubles the scanning depth to 1 1/2 in. (38 mm)
• WireWarning® detection indicates the presence of live, unshielded electrical wiring up to 2 in. (51 mm) deep

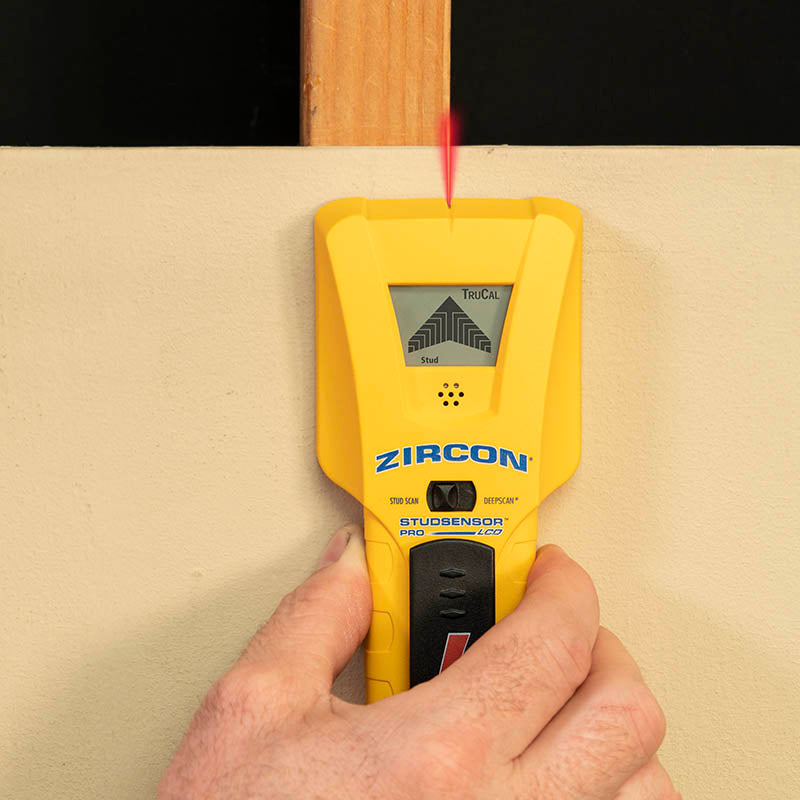

• Patented SpotLite® Pointing System and audio tone signals when the stud edge is reached.

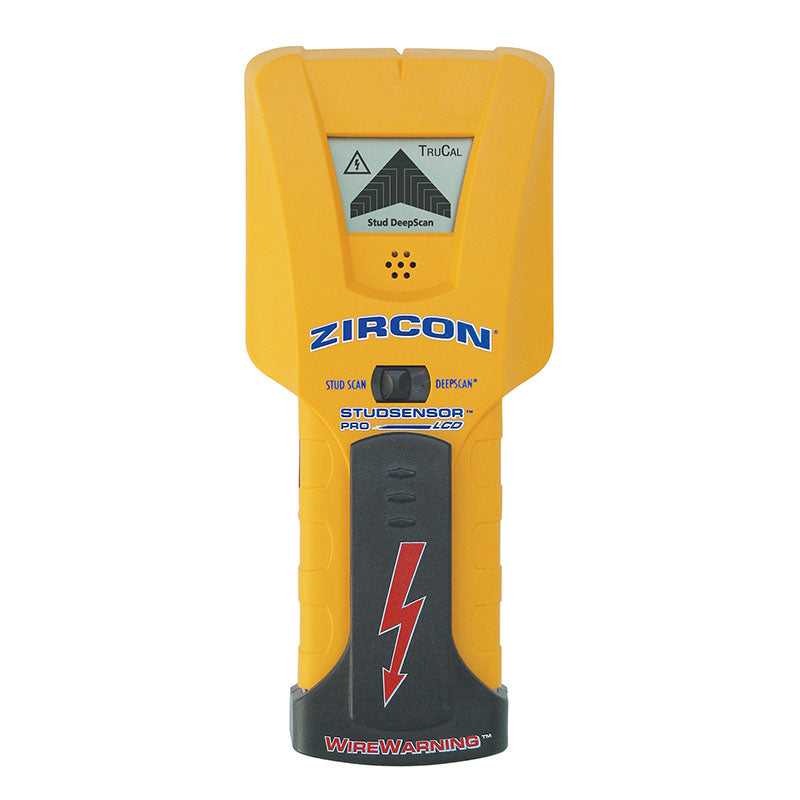

• Easy-to-read LCD display indicates when a stud edge is approached.

• Battery Type 9V alkaline (not included)
• Dimensions 6.07 in. H x 2.68 in. W x 1.12 in. D (154 mm x 68 mm x 28 mm)
• Weight 3.2 oz. (92.0 g) without battery
• Splash and water resistant, not waterproof
• Indoor use only


Position Accuracy*

• Up to a depth of ¾ in. (19 mm): Typically within ¹⁄₈ in. (3 mm) using the dual scan and mark procedure
• Up to a depth of 1½ in. (38 mm): Typically within ³⁄₁₆ in. (5 mm) using the dual scan and mark procedure

Depth*

• StudScan mode: Up to ¾ in. (19 mm)
• DeepScan® mode: Up to 1½ in. (38 mm)

WireWarning® Position Accuracy*

• Typically 90-250 V at 50-60 Hz within 6 in. (152 mm) of a hot unshielded wire in drywall

WireWarning® Depth*

• In typical wall with Romex™ wiring, wire can be detected up to 2 in. (51 mm) deep

*NOTE: See tool's instructions for more information. Sensing depth and accuracy can vary due to moisture, content of materials, wall texture, paint, etc.

This product is covered by Zircon’s Limited Lifetime Warranty for the United States and Canada.
