• StudScan Mode locates the edges of wood and metal studs up to 3⁄4 in. (19 mm) deep

• READY Light indicates when calibration is complete and tool is ready for use

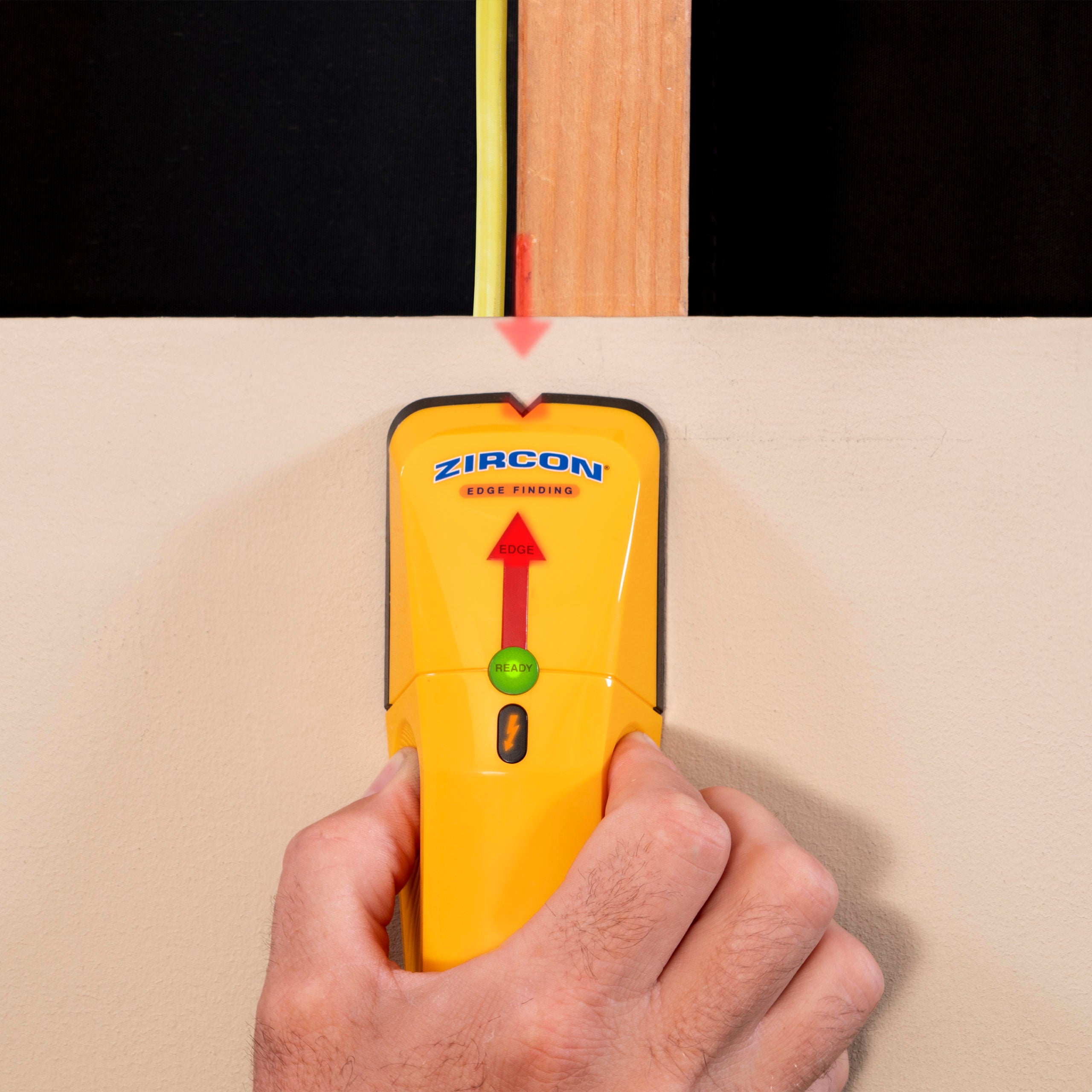

• EDGE Arrow lights up sequentially as the tool approaches a stud and fully illuminates when the stud edge is located

• Zircon’s patented "over-the-stud" feature alerts if scan begins over a stud

• WireWarning® Detection indicates the presence of live, unshielded AC electrical wiring up to 2 in. (50 mm) deep

• SpotLite® Pointer shines an arrow-shaped image on the scanned surface to clearly indicate the edge of the stud

• A "V" marker groove enables accurate marking of stud edge location

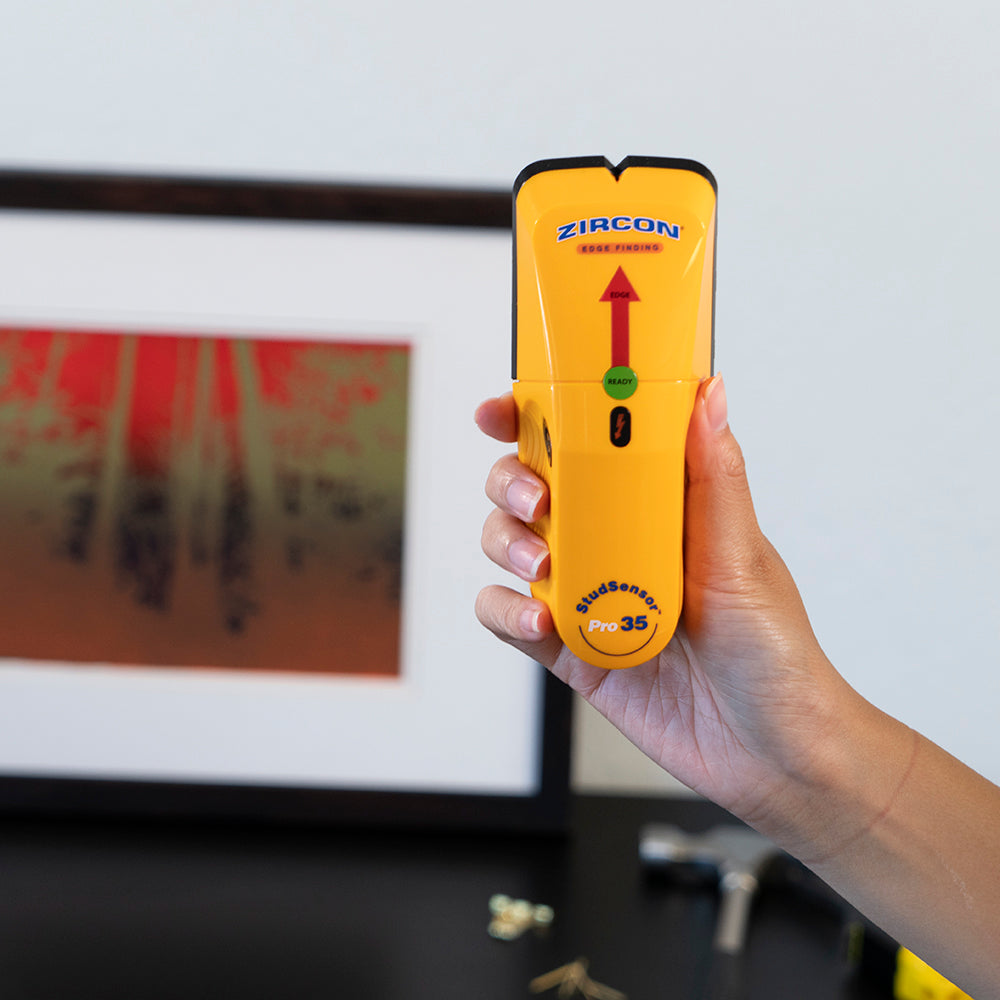

• Ergonomic grip for a secure hold in either hand at any angle

• Battery Type 9V alkaline (not included)
• Dimensions 8.94 in. H x 3.84 in. W x 2.23 in. D (227 mm x 98 mm x 57 mm)
• Weight 9.17 oz. (260 g) without battery
• Position Accuracy Center of #4 (½ in.) rebar or ½ in. (13 mm) copper pipe at a minimum grid spacing of 6 in. (152 mm) typically within ½ in. (13 mm)

Depth*

• Up to 6 in. (152 mm) ± 1 in. (25 mm)

Splash and water resistant, not waterproof

*NOTE: See tool's instructions for more information. Sensing depth and accuracy can vary due to moisture, content of materials, wall texture, paint, etc.

This product is covered by Zircon’s Limited Lifetime Warranty for the United States and Canada.
