• StudScan Mode locates the center edges and direction of wood and metal studs up to 3⁄4 in. (19 mm) deep
• DeepScan® Mode doubles the scanning depth to locate the center
• edges and direction of wood and metal studs up to 11⁄2 in. (38 mm)
• Metal Scan Mode locates non-ferrous metal such as copper pipe up to 11⁄2 in. (38 mm) deep and ferrous metal such as rebar up to 3 in. (75 mm) deep
• WireWarning® Detection indicates the presence of live unshielded AC electrical wiring up to 2 in. (50 mm) deep in stud and metal scanning modes
• ACT™ (Auto Correcting Technology) automatically recalibrates the MultiScanner ® when needed. ACT™ also corrects common errors such as when scanning begins over a stud
• Low Battery Indicator alerts the user to replace the battery with a brand new battery with an extended expiration date for optimum performance
• Signal Strength Indicator helps to distinguish between shallow and deep targets

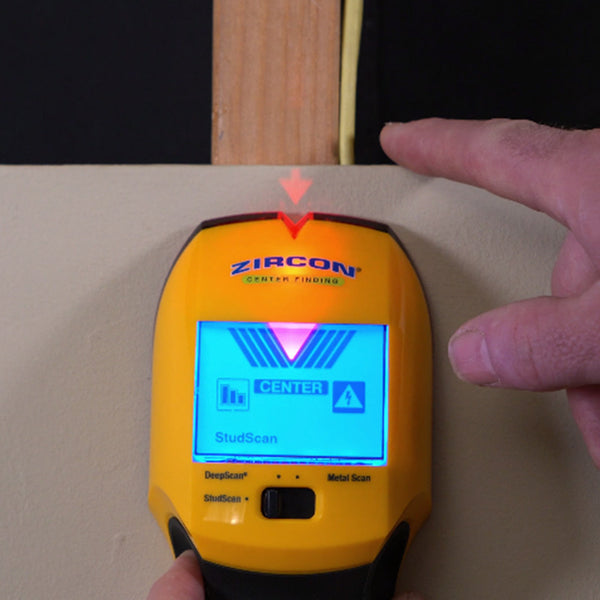

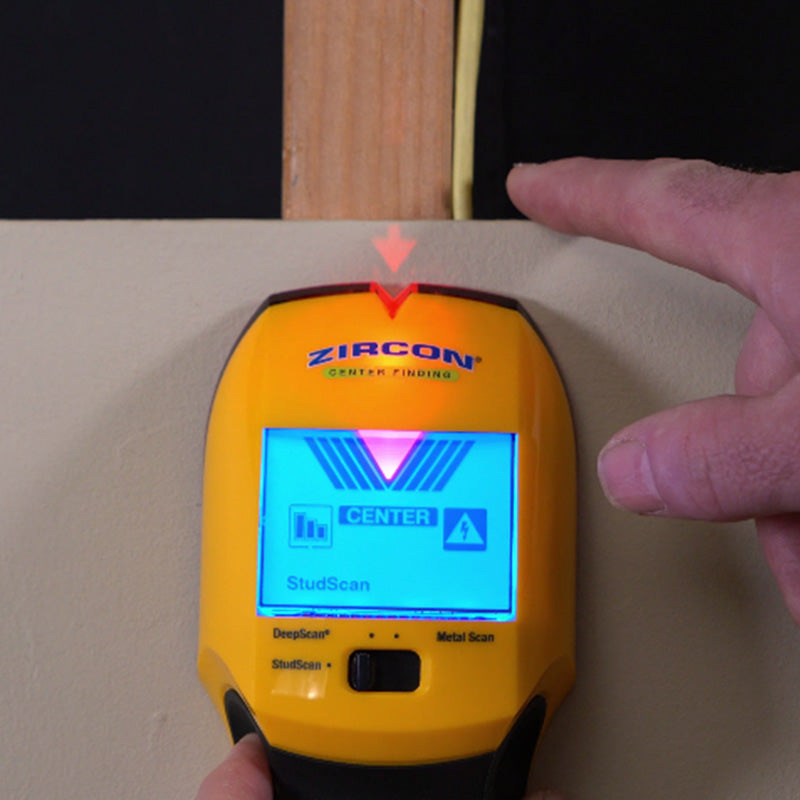

• SpotLite® Pointer shines an arrow-shaped light on the scanned surface to clearly indicate the location of the target
• Translucent base and illuminated "V" marker groove provides more accurate marking of target location
• Ergonomically designed grip allows a comfortable hold on the tool for any size hand at any angle

• Battery Type 9V alkaline required (not included)
• Dimensions 7.72 in. H x 3.23 in. W x 1.80 in. D (196 mm x 82 mm x 46 mm)
• Weight 8.13 oz. (230 g) without battery

Depth*

• StudScan Mode: Up to 3⁄4 in. (19 mm)
• DeepScan® Mode: Up to 11⁄2 in. (38 mm)
• Metal Scan Mode: Up to 11⁄2 in. (38 mm) for copper, up to 3 in. (75 mm) for rebar

Position Accuracy*

• Up to a depth of 3⁄4 in. (19 mm): Typically within 1⁄8 in. (3 mm)
• Up to a depth of 11⁄2 in. (38 mm): Typically within 3⁄16 in. (5 mm)
• In Metal Scan Mode: Typically within 1⁄2 in. (13 mm) using the dual scan and mark procedure
• WireWarning® Position Accuracy* Typically 90-250 V at 50-60Hz within 6 in. (152 mm) of a hot unshielded wire in drywall
• WireWarning® Depth*In typical wall with Romex® wiring, wire can be detected up to 2 in. (51 mm) deep

Splash and water resistant, not waterproof

*NOTE: USE ONLY IN ACCORDANCE WITH A200 INSTRUCTIONS.

Sensing depth and accuracy can vary depending on scanning environment conditions such as mineral contents, moisture, texture and consistency of the wall materials.

Indoor use only

This product is covered by Zircon’s Limited Lifetime Warranty for the United States and Canada.
