• StudScan Mode locates the center edges and direction of wood and metal studs up to 3⁄4 in. (19 mm) deep

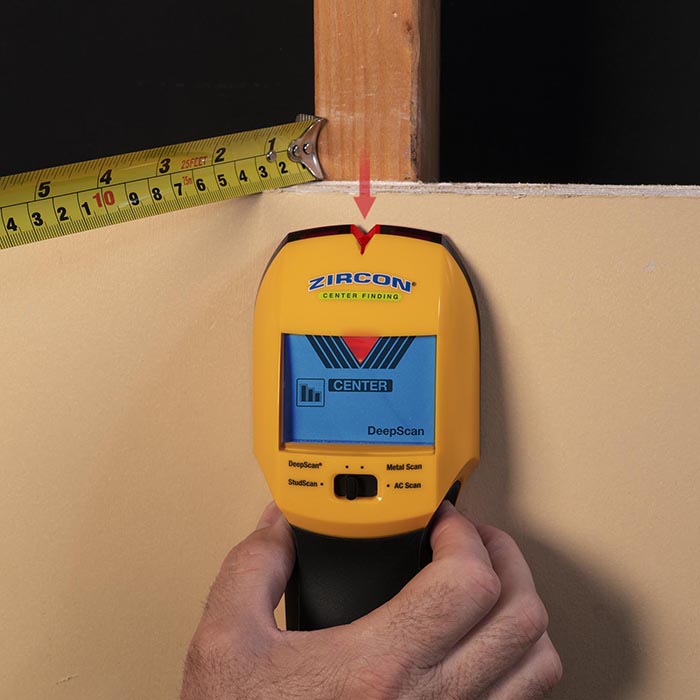

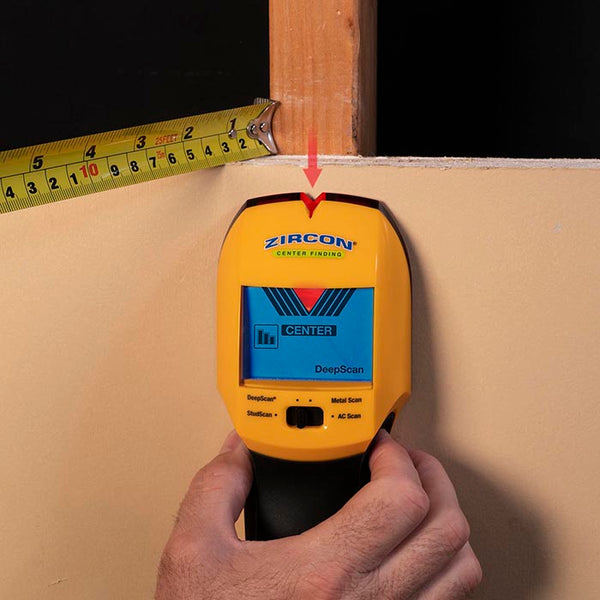

• DeepScan® Mode doubles the scanning depth to locate the center edges and direction of wood and metal studs up to 11⁄2 in. (38 mm)

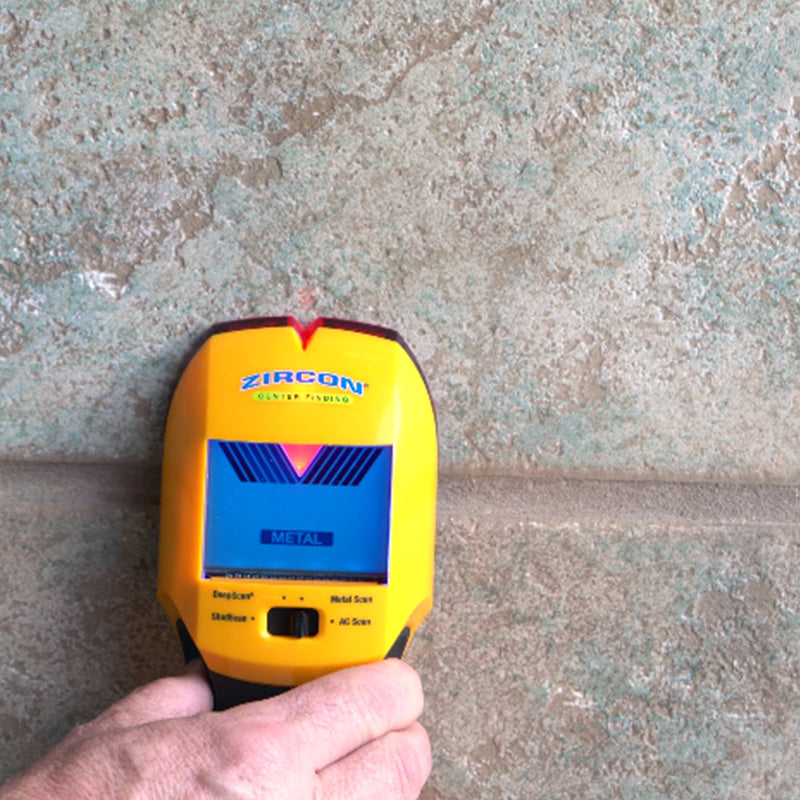

• Metal Scan Mode locates non-ferrous metal such as copper pipe up to 11⁄2 in. (38 mm) deep and ferrous metal such as rebar up to 3 in. (75 mm) deep
• AC Scan Mode locates live unshielded AC electrical wiring up to 2 in. (50 mm) deep
• WireWarning® Detection indicates the presence of live unshielded
• AC electrical wiring up to 2 in. (50 mm) deep in stud and metal scanning modes
• ACT™ (Auto Correcting Technology) automatically recalibrates the MultiScanner ® when needed. ACT™ also corrects common errors such as when scanning begins over a stud
• Low Battery Indicator alerts the user to replace the battery with a brand new battery with an extended expiration date for optimum performance
• Signal Strength Indicator helps to distinguish between shallow and deep targets
• SpotLite® Pointer shines an arrow-shaped light on the scanned surface to clearly indicate the location of the target
• Translucent base and illuminated "V" marker groove provides more accurate marking of target location
• Ergonomically designed grip allows a comfortable hold on the tool for any size hand at any angle

• Battery Type 9V alkaline required (not included)
• Dimensions 7.72 in. H x 3.23 in. W x 1.80 in. D (196 mm x 82 mm x 46 mm)
• Weight 8.13 oz. (230 g) without battery

Depth*

• StudScan Mode: Up to 3⁄4 in. (19 mm)
• DeepScan® Mode: Up to 11⁄2 in. (38 mm)
• Metal Scan Mode: Up to 11⁄2 in. (38 mm) for copper, up to 3 in. (75 mm) for rebar

Position Accuracy*

• Up to a depth of 3⁄4 in. (19 mm): Typically within 1⁄8 in. (3 mm)
• Up to a depth of 11⁄2 in. (38 mm): Typically within 3⁄16 in. (5 mm)
• In Metal Scan Mode: Typically within 1⁄2 in. (13 mm) using the dual scan and mark procedure
• AC & WireWarning® Position Accuracy* Typically 90-250 V at 50-60Hz within 6 in. (152 mm) of a hot unshielded wire in drywall
• AC & WireWarning® Depth*In typical wall with Romex® wiring, wire can be detected up to 2 in. (51 mm) deep
• Splash and water resistant, not waterproof

*NOTE: USE ONLY IN ACCORDANCE WITH A250 INSTRUCTIONS

• Sensing depth and accuracy can vary depending on scanning environment conditions such as mineral contents, moisture, texture and consistency of the wall materials.
• Indoor use only.

This product is covered by Zircon’s Limited Lifetime Warranty for the United States and Canada.
