• StudScan Mode locates the center edges and direction of wood and metal studs up to 3⁄4 in. (19 mm) deep

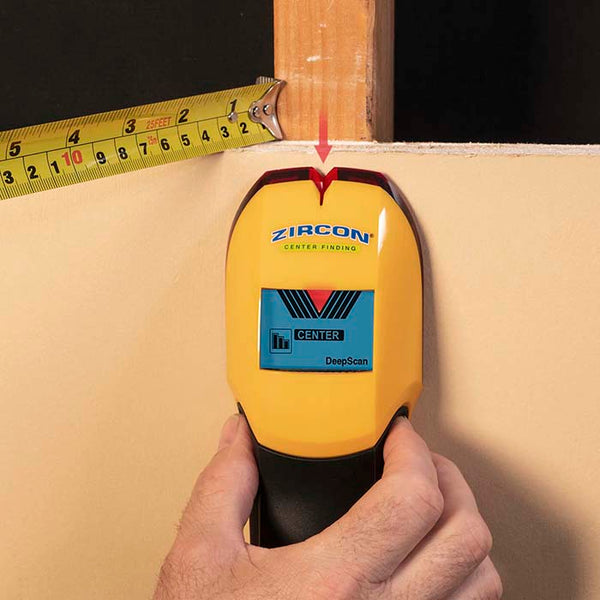

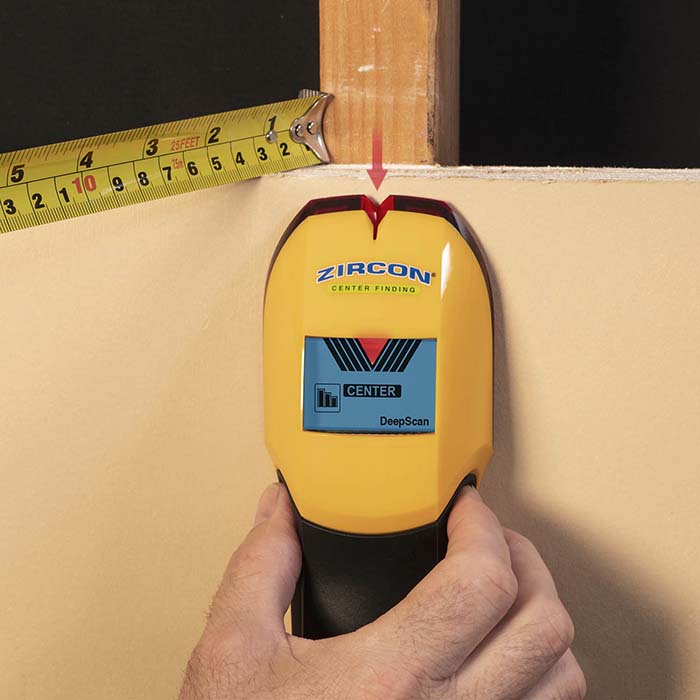

• DeepScan® Mode doubles the scanning depth to locate the center edges and direction of wood and metal studs up to 1 1⁄2 in. (38 mm)
• WireWarning® Detection indicates the presence of live unshielded AC electrical wiring up to 2 in. (50 mm) deep in both stud scanning modes
• ACT™ (Auto Correcting Technology) automatically recalibrates the StudSensor™ when needed. ACT™ also corrects common errors such as when scanning begins over a stud
• Low Battery Indicator alerts the user to replace the battery with a brand new battery with an extended expiration date for optimum performance
• Signal Strength Indicator helps to distinguish between shallow and deep targets
• SpotLite® Pointer shines an arrow-shaped light on the scanned surface to clearly indicate the location of the target
• Translucent base and illuminated "V" marker groove provides more accurate marking of target location
• Ergonomically designed grip allows a comfortable hold on the tool for any size hand at any angle

Battery Type 9V alkaline required (not included)

Dimensions 7.05 in. H x 2.92 in. W x 1.65 in. D (179 mm x 74 mm x 42 mm

Weight 5.47 oz. (155 g) without battery

Depth*

StudScan mode: Up to ¾ in. (19 mm)

DeepScan® mode: Up to 1 ½ in. (38 mm)

Position Accuracy*

Up to a depth of 3⁄4 in. (19 mm): Typically within 1⁄8 in. (3 mm) for center, 3⁄16 in. (5 mm) for edge

Up to a depth of 1 1⁄2 in. (38 mm): Typically within 1⁄4 in. (6 mm) for center

WireWarning® Position Accuracy* Typically 90-250 V at 50-60Hz within 6 in. (152 mm) of a hot unshielded wire in drywall

WireWarning® Depth*In typical wall with Romex® wiring, wire can be detected up to 2 in. (51 mm) deep

Splash and water resistant, not waterproof

*NOTE: Sensing depth and accuracy can vary due to moisture, content of materials, wall texture, paint, etc.

Not recommended for use on lath and plaster.

Indoor use only

This product is covered by Zircon’s Limited Lifetime Warranty for the United States and Canada.
