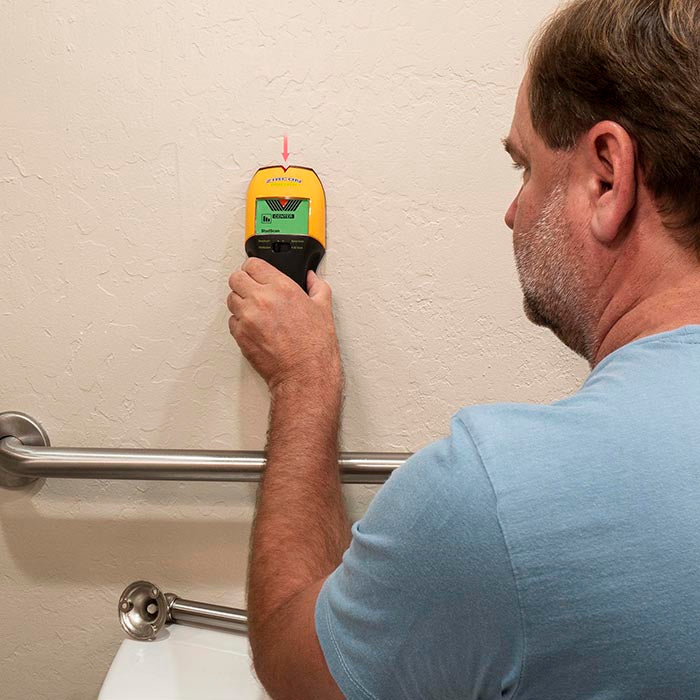

• StudScan mode locates the center edges and direction of wood or metal studs up to 3⁄4 in. (19 mm) deep
• DeepScan® mode doubles the scanning depth to 11⁄2 in. (38 mm)
• WireWarning® detection indicates the presence of live unshielded AC electrical wiring up to 2 in. (51 mm) deep in stud and metal scanning modes

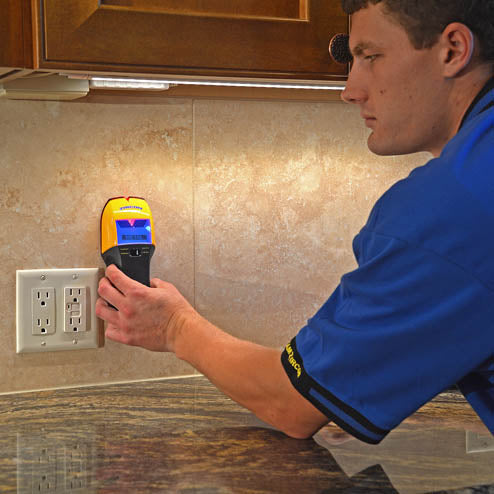

• Metal Scan mode locates non-ferrous metal such as copper pipe up to 11⁄2 in. (38 mm) deep and ferrous metal such as rebar up to 3 in. (76 mm) deep
• AC Scan mode locates live unshielded AC electrical wiring up to 2 in. (51 mm) deep
• ACT™ (Auto Correcting Technology) automatically corrects common errors such as when scanning begins over a stud
• ColorTrip™ multicolor display with Target Spotlight indicates the direction and edge of the stud and illuminates when then center of the stud is detected
• Low battery indicator for optimum performance Signal Strength indicator helps to distinguish between shallow and deep targets
• SpotLite® Pointer shines an arrow-shaped light on the wall to clearly indicate the center of the stud
• Translucent base and illuminated "V" marker groove for more accurate marking of target location

• Battery Type 9V alkaline, required
• Dimensions 7.72 in. H x 3.23 in. W x 1.59 in. D (196 mm x 82 mm x 40 mm)
• Weight 8.0 oz. (227 g) without battery

Depth*

• StudScan mode: Up to 3⁄4 in. (19 mm)
• DeepScan® mode: Up to 11⁄2 in. (38 mm)
• Metal Scan Mode: Up to 11⁄2 in. (38 mm) for copper, up to 3 in. (76 mm) for rebar

Position Accuracy*

• Up to a depth of 3⁄4 in. (19 mm): Typically within 1⁄8 in. (3 mm)
• Up to a depth of 11⁄2 in. (38 mm): Typically within 3⁄16 in. (5 mm)
• In Metal Scan mode: Typically within 1⁄2 in. (13 mm) using the dual scan and mark procedure
• AC & WireWarning® Position Accuracy*
• Typically 90-250 V at 50-60 Hz within 6 in. (152 mm) of a hot unshielded wire in drywall

AC WireWarning® Depth*

• In typical wall with Romex® wiring, wire can be detected up to 2 in. (51 mm) deep

Splash and water resistant, not waterproof

*NOTE: Sensing depth and accuracy can vary due to moisture, content of materials, wall texture, paint, etc.

Not recommended for use on lath and plaster.

Indoor use only

This product is covered by Zircon’s Limited Lifetime Warranty for the United States and Canada.
