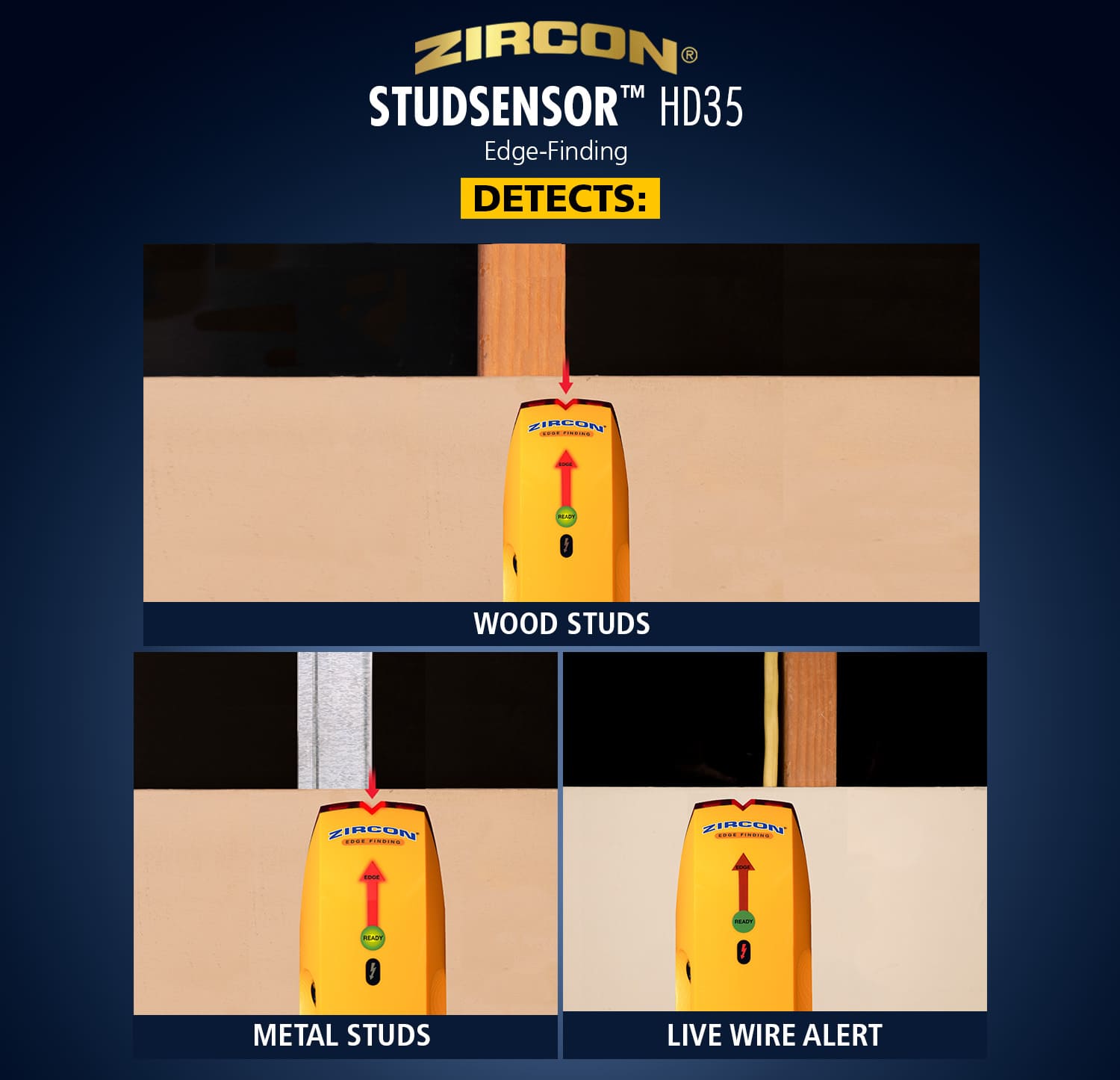

• StudScan mode locates the edges of wood or metal studs up to ¾ in. (19 mm) deep

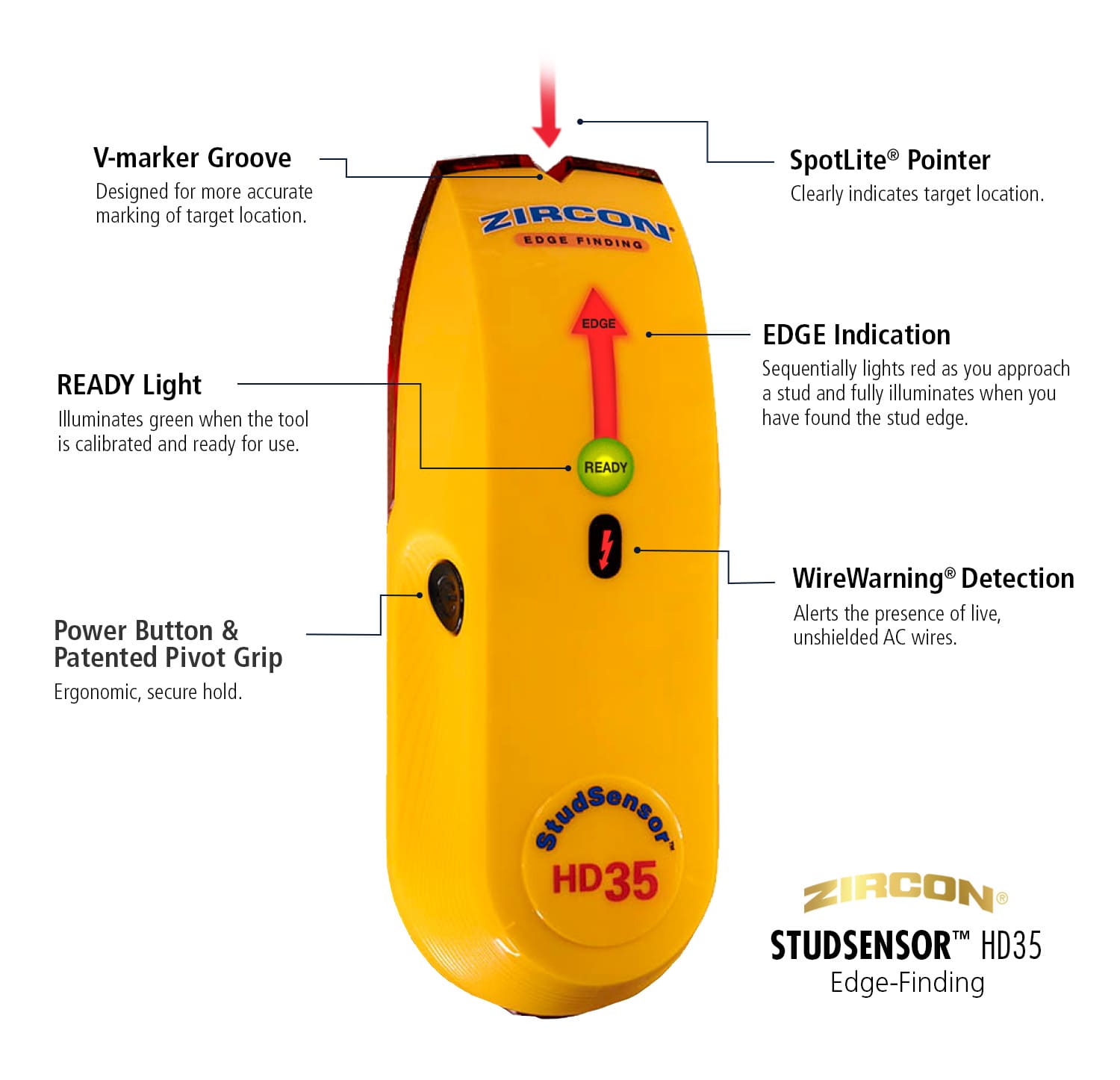

• READY light indicates when calibration is complete and tool is ready for use
• EDGE arrow lights up sequentially as you approach a stud and fully illuminates when you have found the stud edge
• Zircon's patented "over-the-stud" indication alerts you to start the scan in a new location as scanning began over a stud
• WireWarning® detection indicates the presence of live unshielded AC electrical wiring up to 2 in. (51 mm) deep
• SpotLite® Pointer shines an arrow-shaped light on the wall to clearly indicate the edge of the stud
• Translucent base and illuminated "V" marker groove for more accurate marking of stud edge location

• Battery Type 9V alkaline, required
• Dimensions 6.09 in. H x 2.37 in. W x 1.31 in. D (155 mm x 60 mm x 33 mm)
• Weight 3.2 oz. (91 g) without battery

Position Accuracy*

• Wood studs: Typically within ¹⁄₈ in. (3 mm) using the dual scan and mark procedure
• Metal studs: Typically within ½ in. (13 mm) using the dual scan and mark procedure
• WireWarning® Position Accuracy: Typically 90-250 V at 50-60Hz within 6 in. (152 mm) of a hot unshielded wire
• WireWarning® Depth* In typical wall with Romex® wiring, wire can be detected up to 2 in. (51 mm) deep

Splash and water resistant, not waterproof

*NOTE: Sensing depth and accuracy can vary due to moisture, content of materials, wall texture, paint, etc. Not recommended for use on lath and plaster.

Indoor use only

This product is covered by Zircon’s Limited Lifetime Warranty for the United States and Canada.
