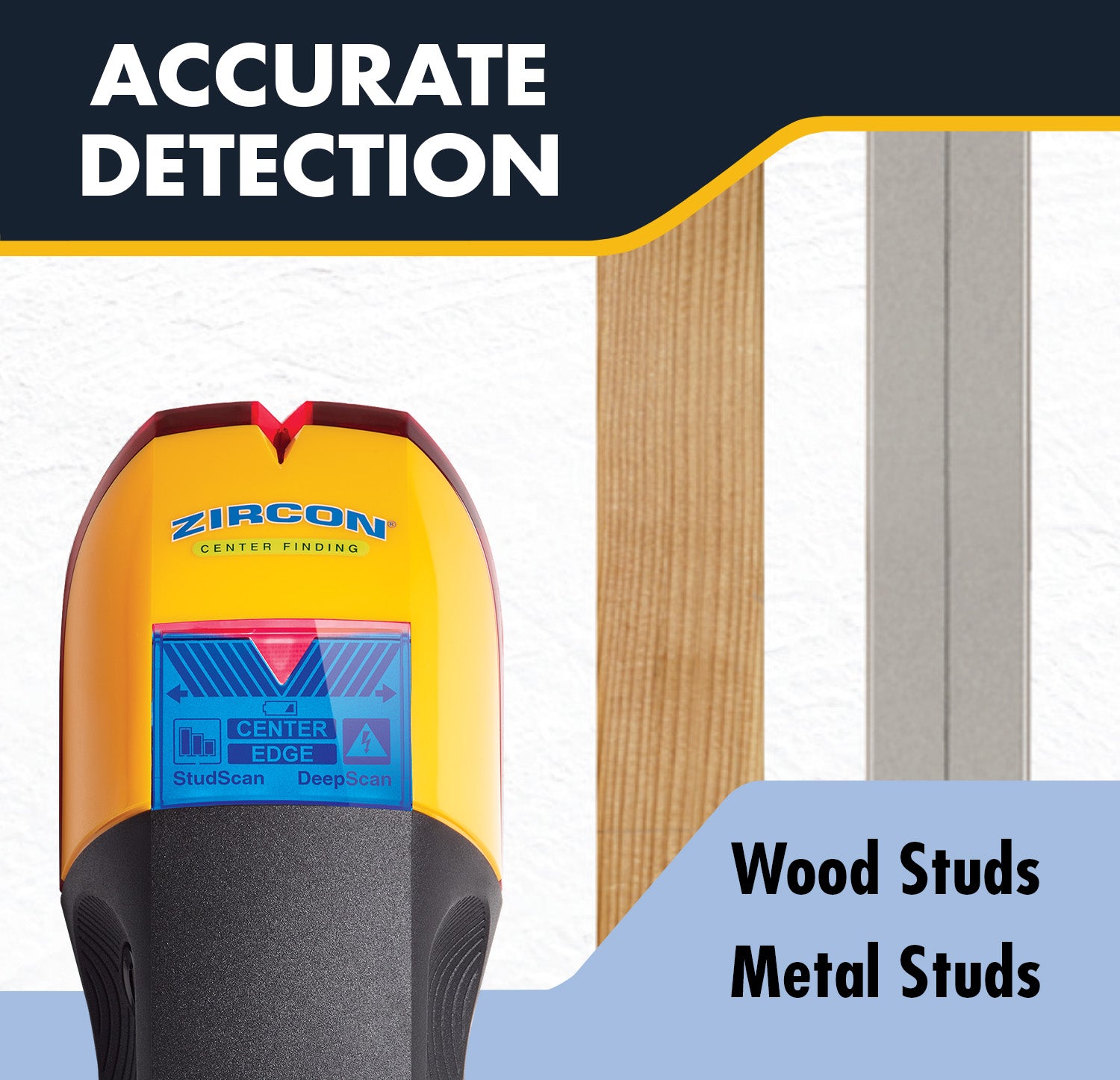

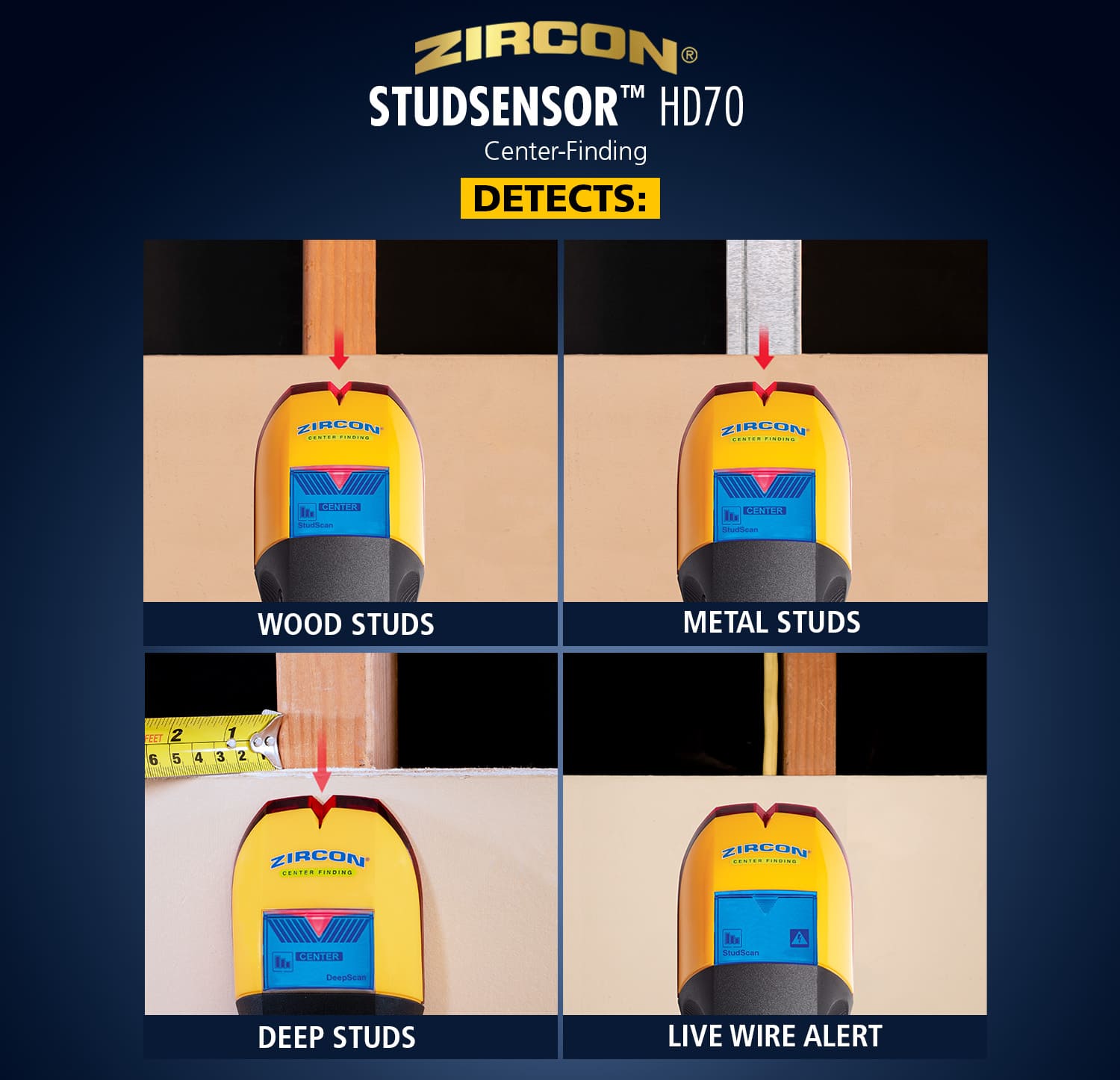

• StudScan mode locates the center edges and direction of wood or metal studs up to ¾ in. (19 mm) deep

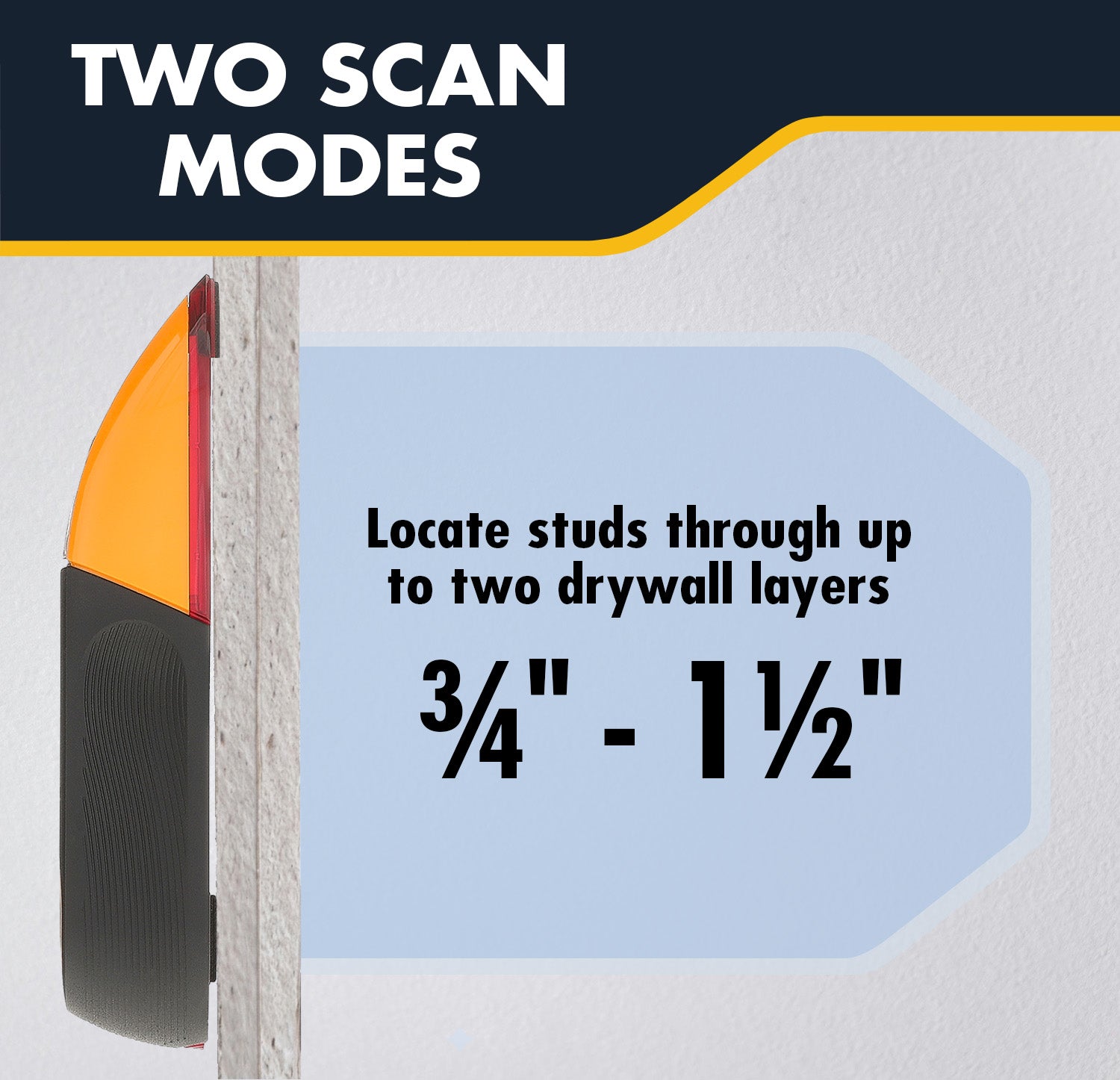

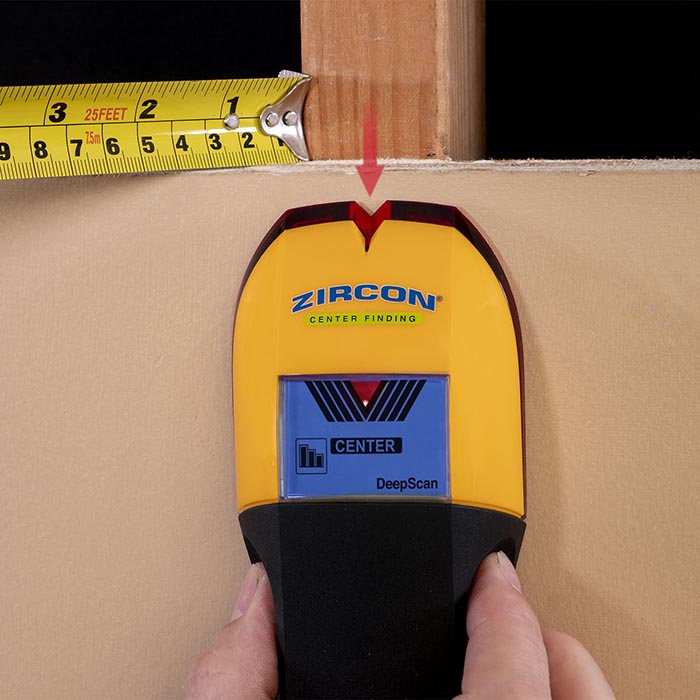

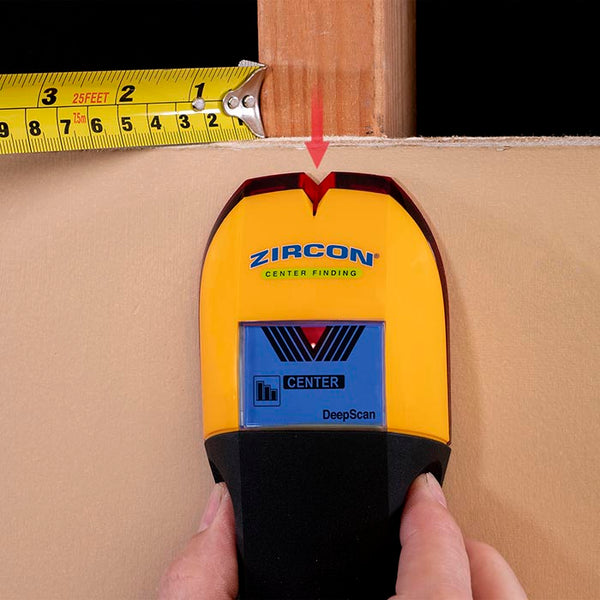

• DeepScan mode® doubles the scanning depth to 1½ in. (38m)
• WireWarning® detection indicates the presence of live unshielded AC electrical wiring up to 2 in. (51 mm) deep
• ACT™ (Auto Correcting Technology) automatically corrects common errors such as when scanning begins over a stud

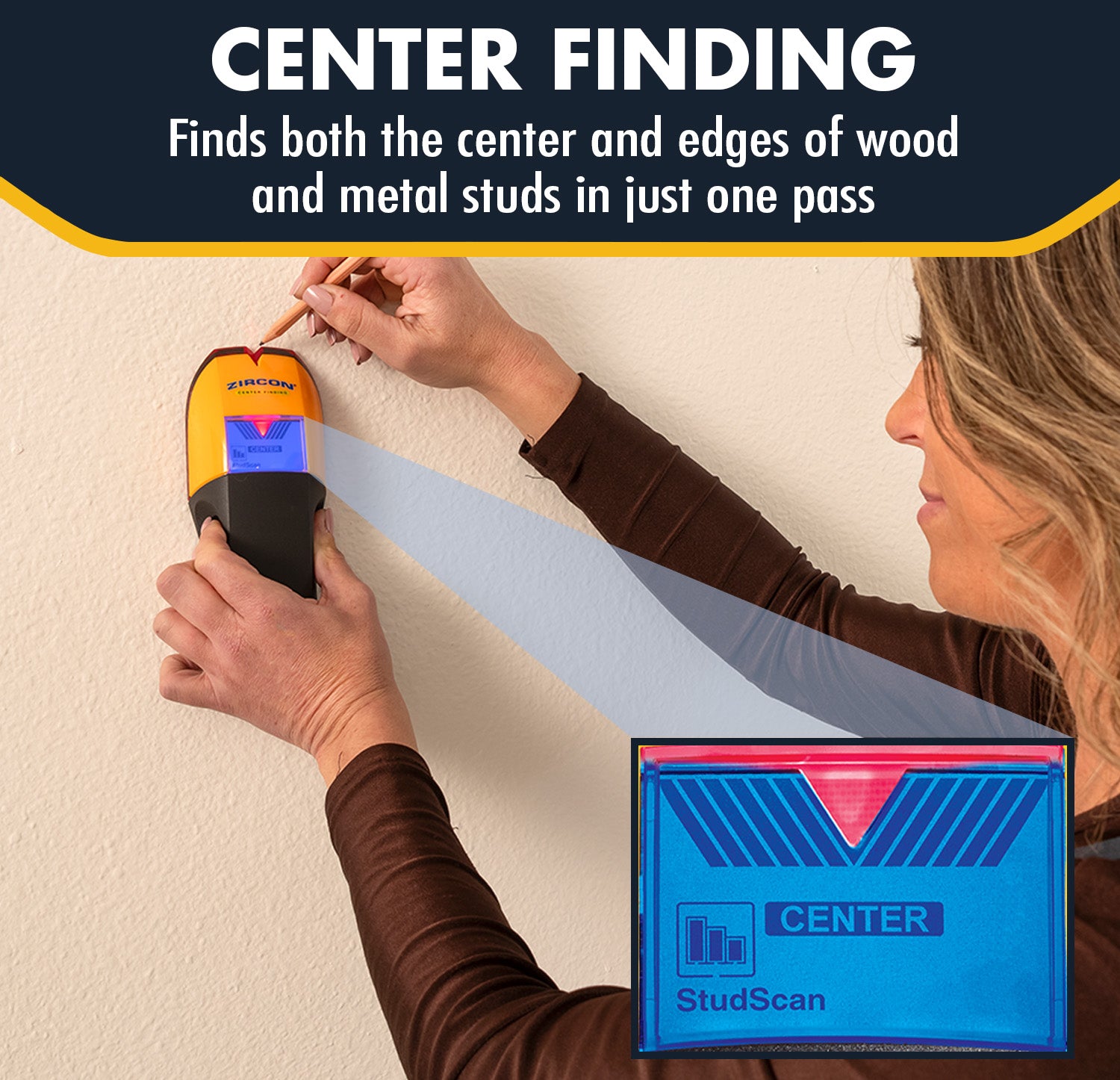

• Backlit LCD display with Target Spotlight indicates the direction and edge of the stud and illuminates when the center of the stud is detected
• Low battery indicator for optimum performance
• Signal Strength indicator helps to distinguish between shallow and deep targets

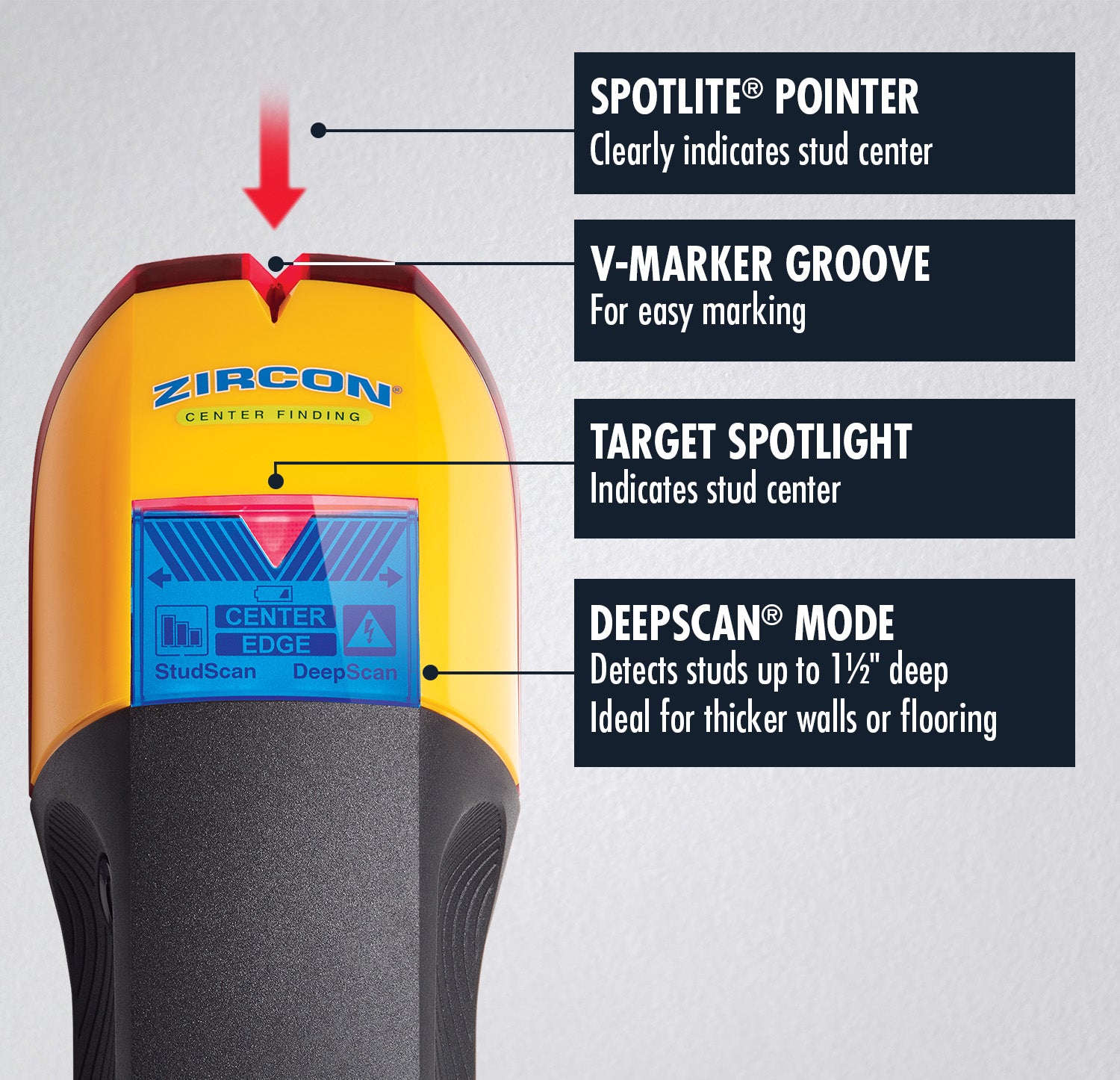

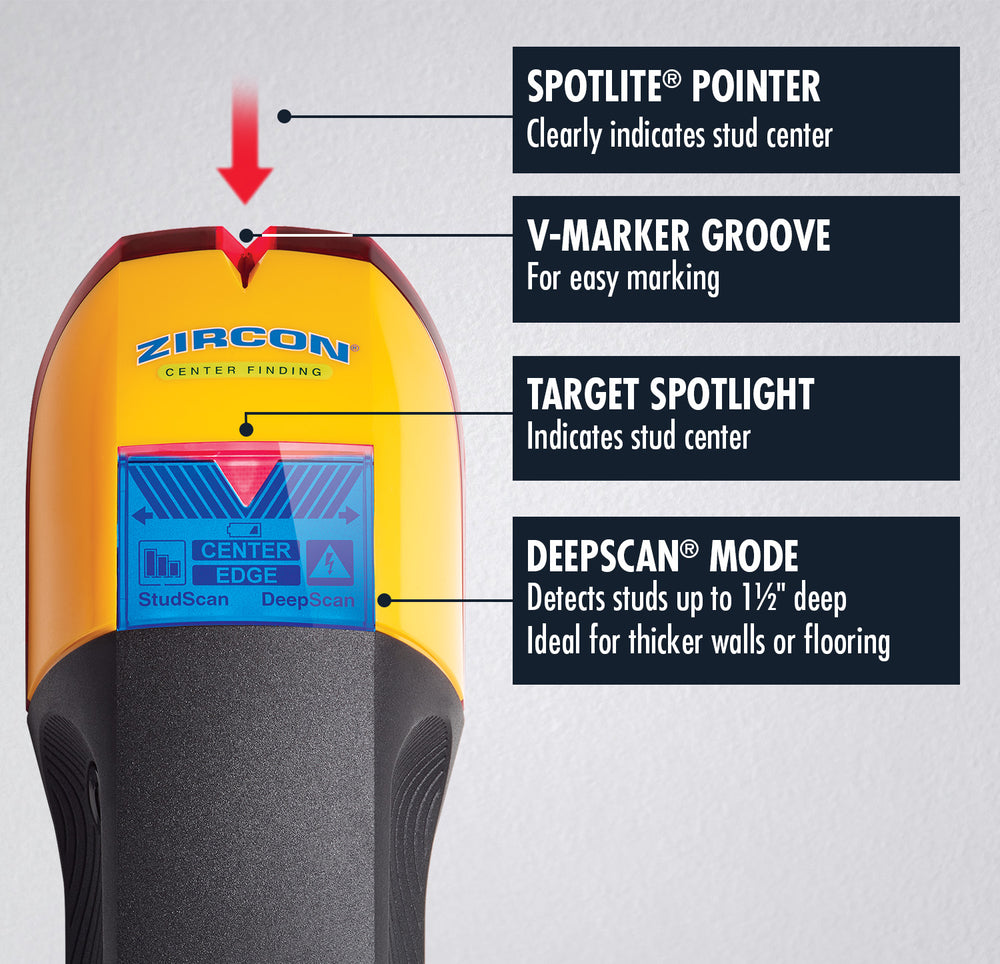

• SpotLite® Pointer shines an arrow-shaped light on the wall to clearly indicate the edge of the stud
• Translucent base and illuminated "V" marker groove for more accurate marking of stud edge location
• Rubber handle for non-slip grip

• Battery Type 9V alkaline, required
• Dimensions 7.09 in. H x 2.93 in. W x 1.36 in. D (180 mm x 74 mm x 34 mm)
• Weight 5.6 oz. (159 g) without battery
• Depth*: StudScan mode: Up to ¾ in. (19 mm), DeepScan® mode: Up to 1 ½ in. (38 mm)
• WireWarning® Position Accuracy* Typically 90-250 V at 50-60Hz within 6 in. (152 mm) of a hot unshielded wire in drywall
• WireWarning® Depth* In typical wall with Romex® wiring, wire can be detected up to 2 in. (51 mm) deep
• Splash and water resistant, not waterproof
• Not recommended for use on lath and plaster
• Indoor use only

*NOTE: Sensing depth and accuracy can vary due to moisture, content of materials, wall texture, paint, etc.

This product is covered by Zircon’s Limited Lifetime Warranty for the United States and Canada.
