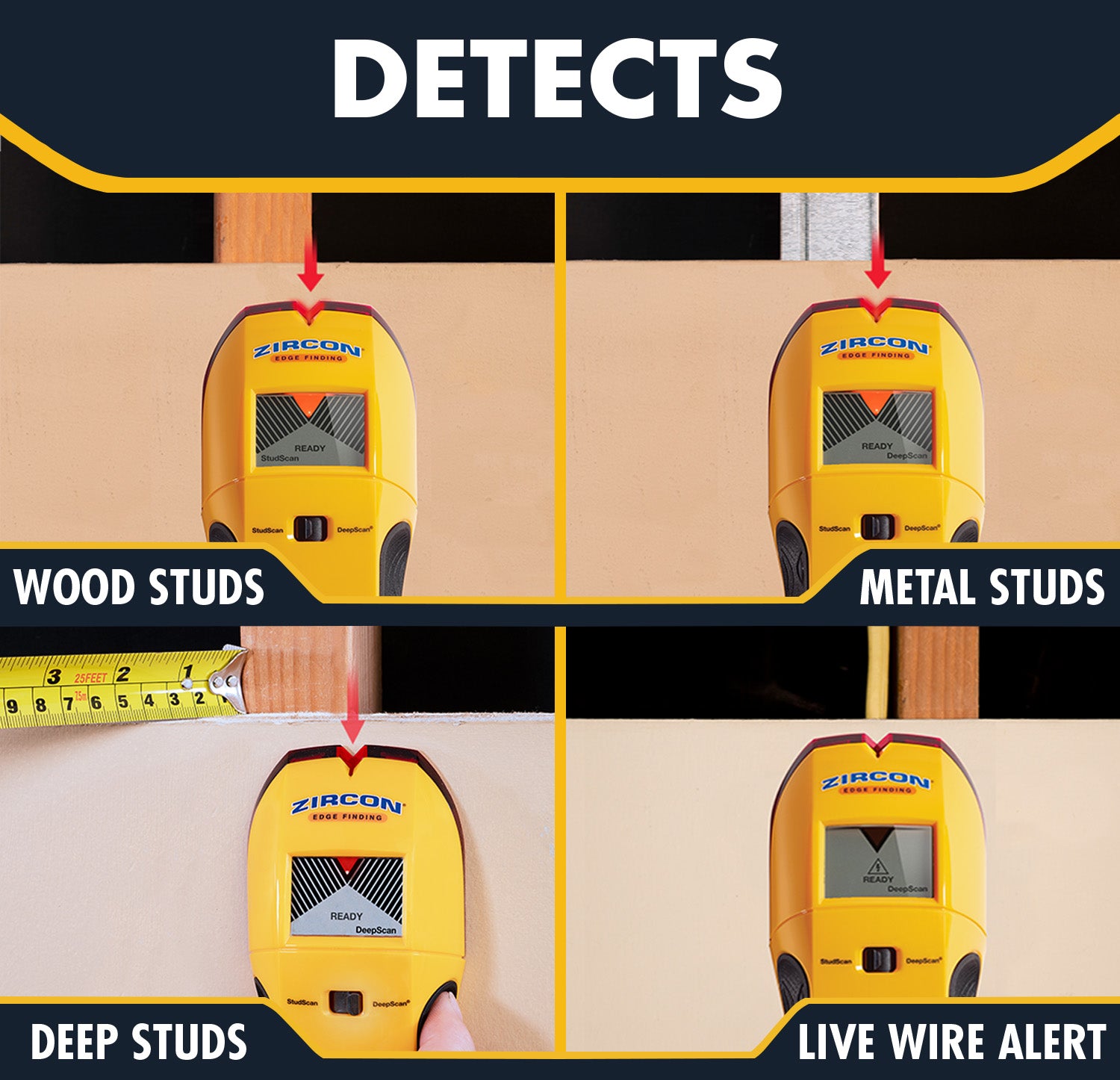

• StudScan mode locates the edges of wood or metal studs up to ¾ in. (19 mm) deep

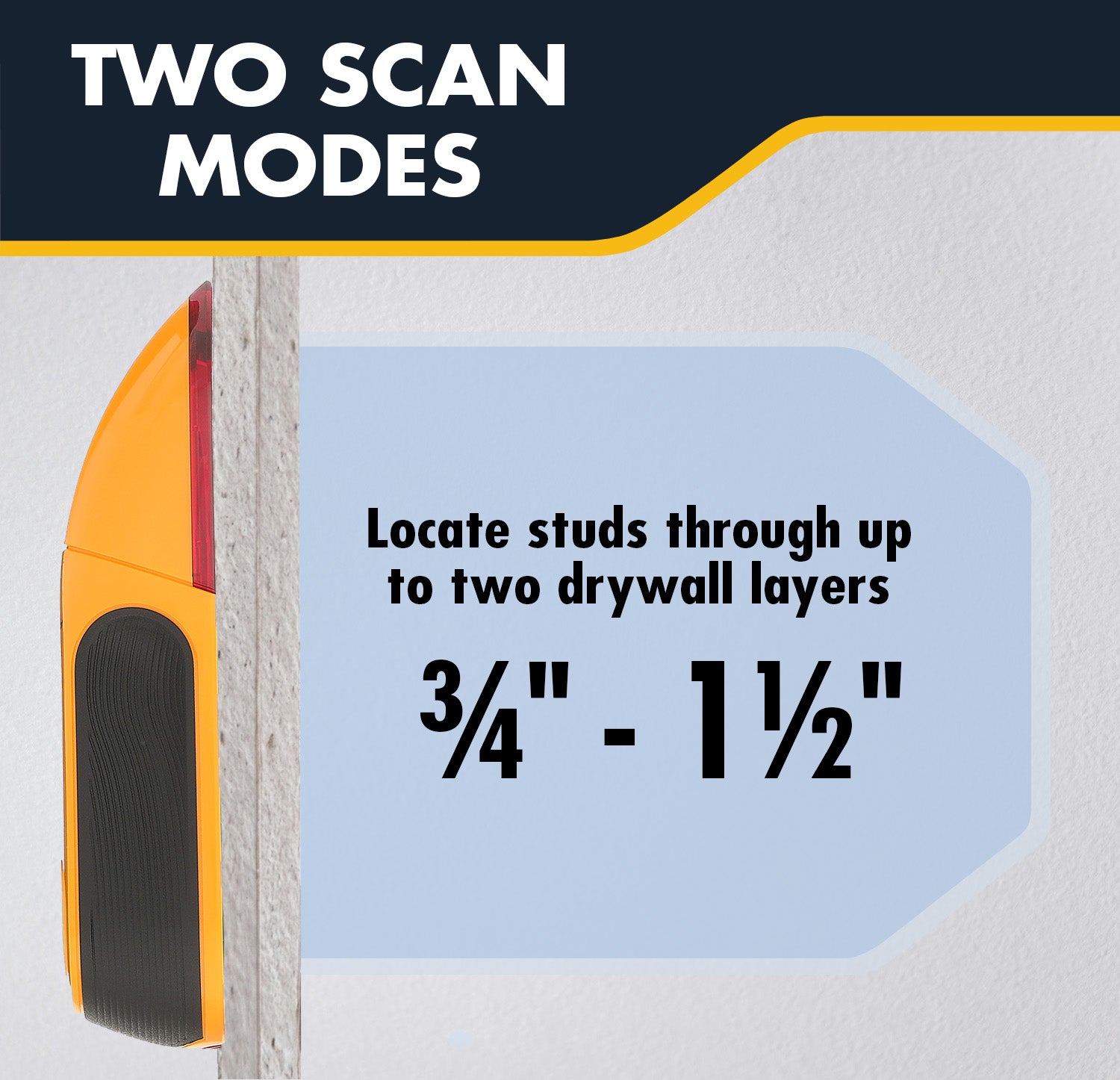

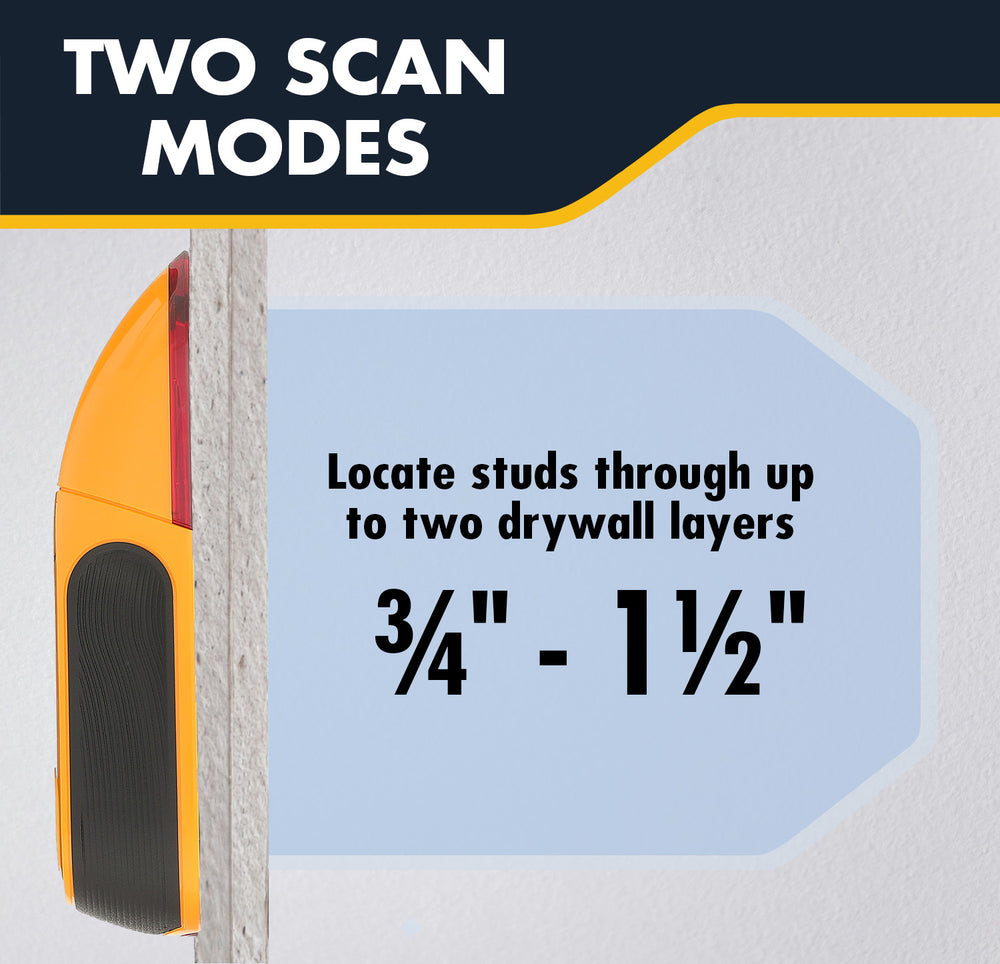

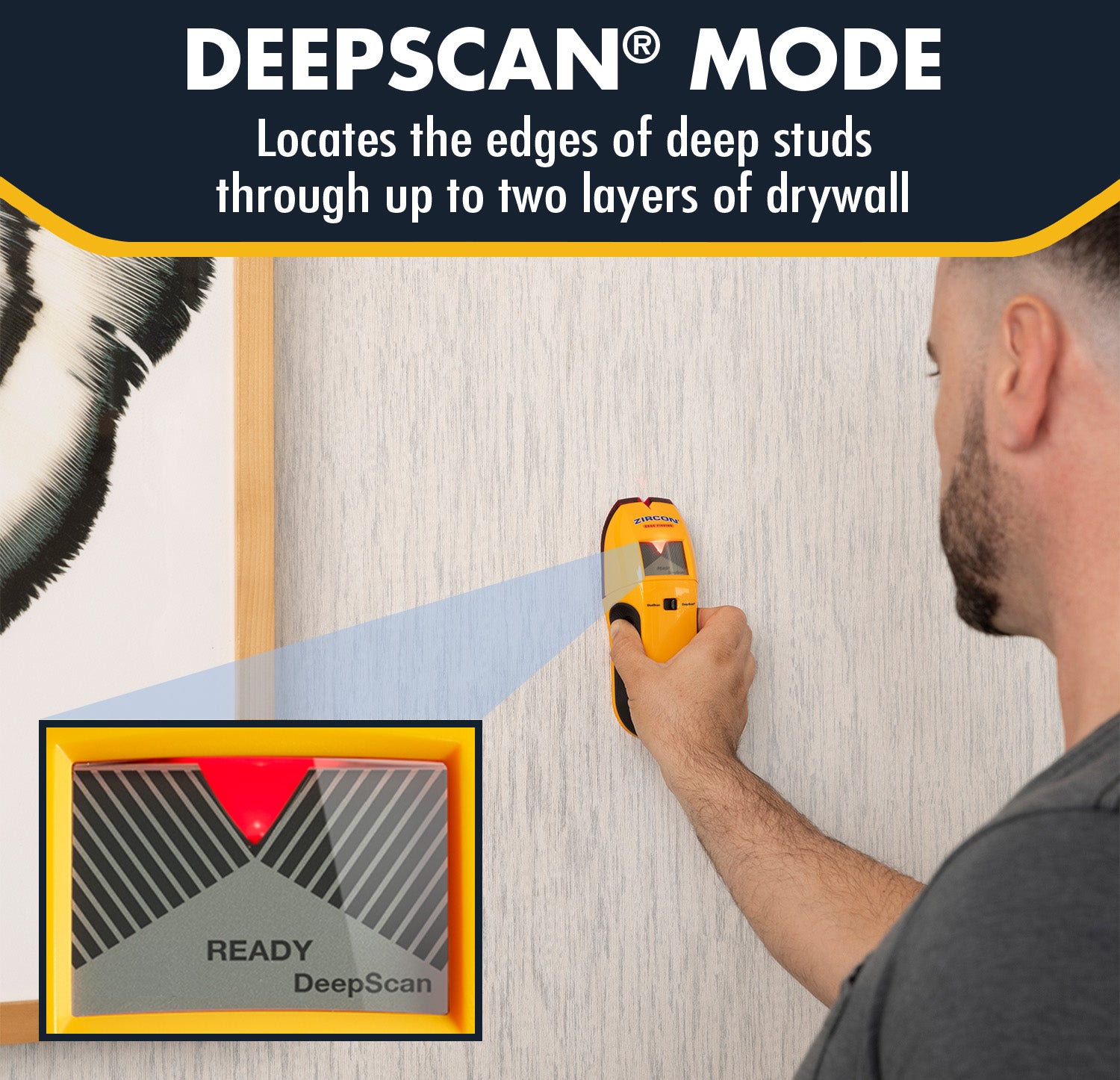

• DeepScan® mode doubles the scanning depth to 1½ in. (38 mm) deep

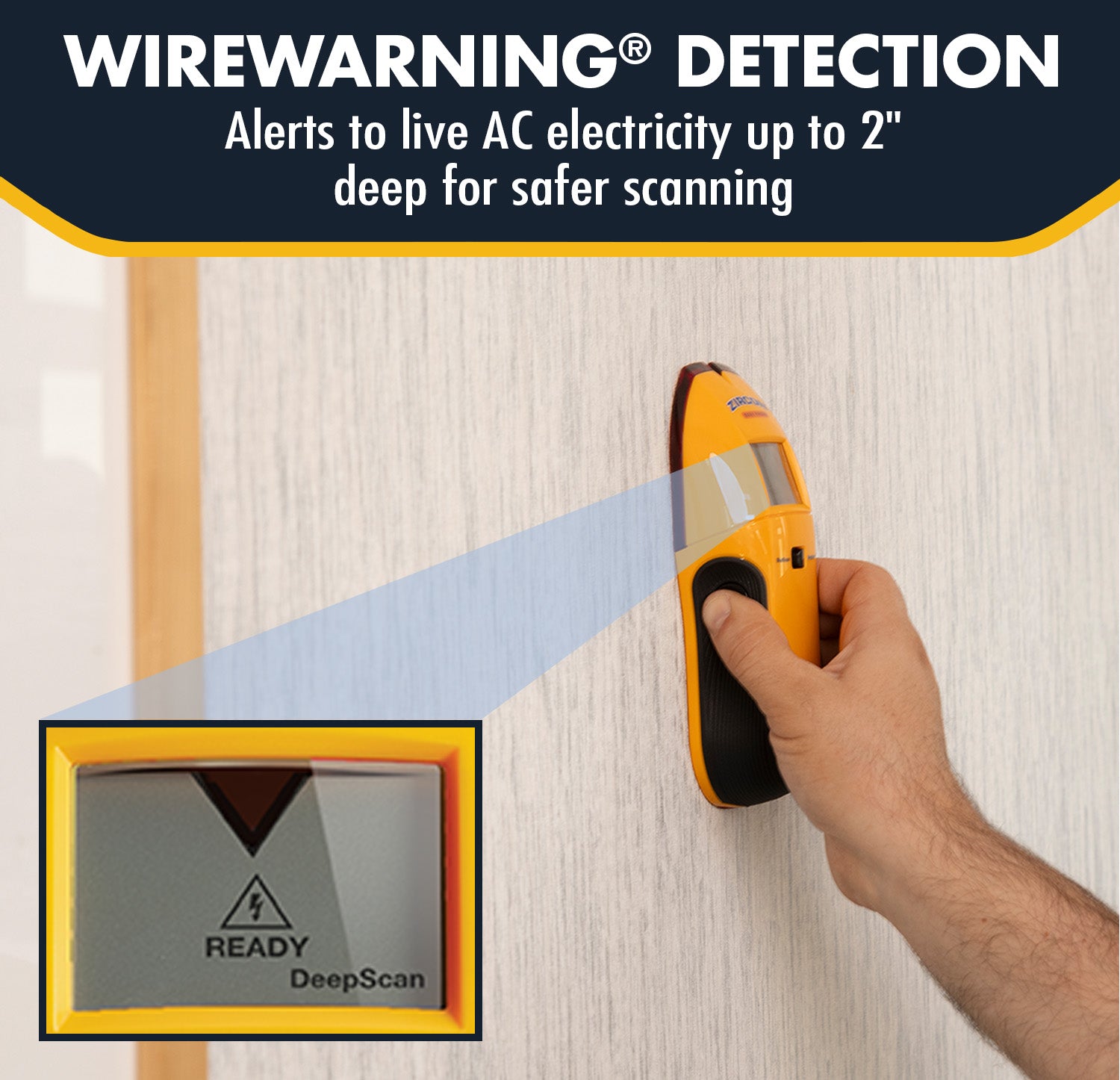

• WireWarning® detection indicates the presence of live unshielded AC electrical wiring up to 2 in. (51 mm) deep
• Zircon's patented "over-the-stud" indication alerts the user to start the scan in a new location if scanning begins over a stud

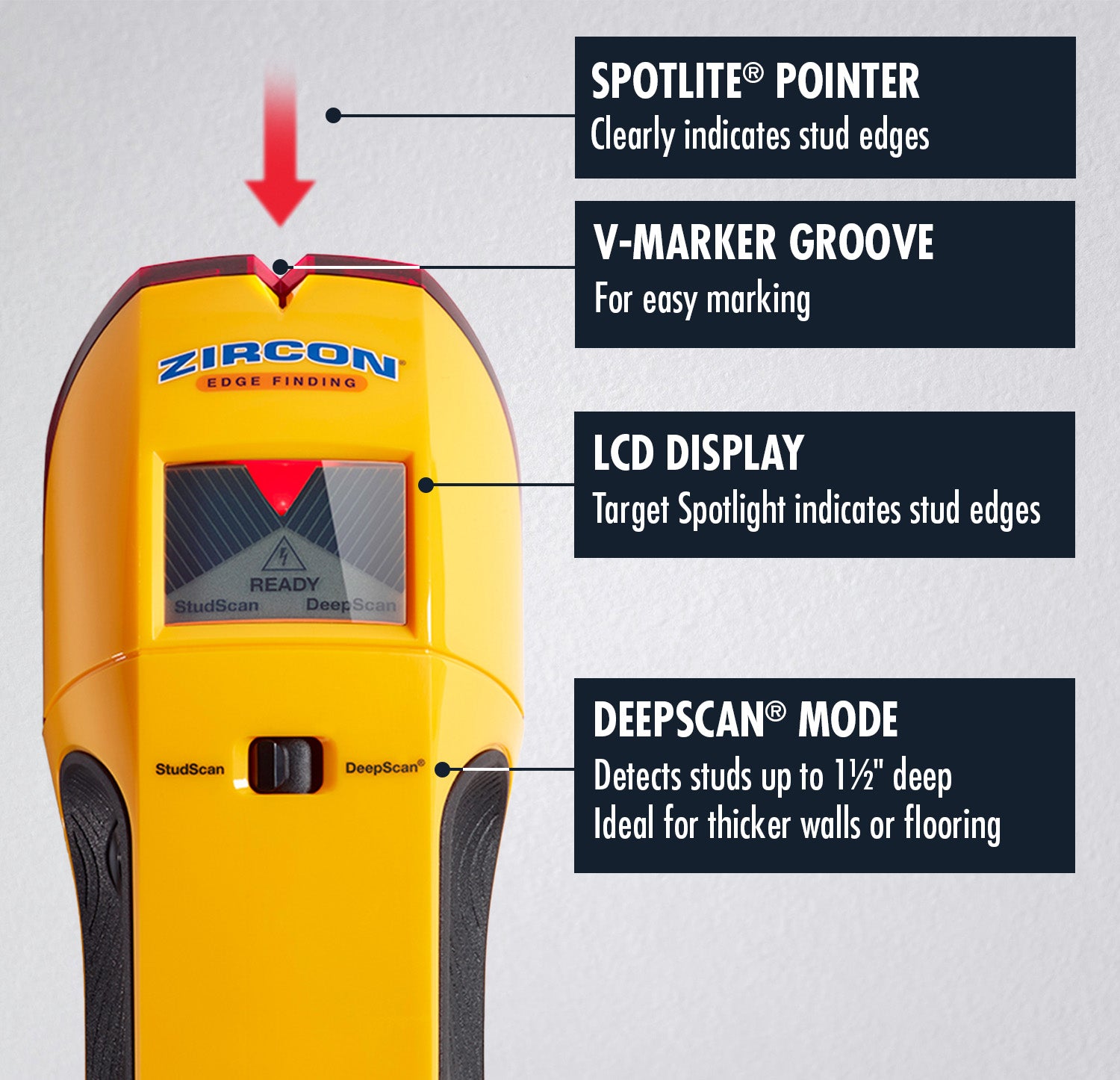

• Enhanced LCD display with Target Spotlight indicates approaching stud edge and illuminates when stud edge is detected
• SpotLite® Pointer shines an arrow-shaped light on the wall to clearly indicate the edge of the stud
• Translucent base and illuminated "V" marker groove for more accurate marking of stud edge location
• Rubber handle for non-slip grip

• Battery Type 9V alkaline, required
• Dimensions 6.78 in. H x 2.84 in. W x 1.47 in. D (172 mm x 72 mm x 37 mm)
• Weight 4.6 oz. (131 g) without battery
• Splash and water resistant, not waterproof
• Indoor use only

Depth*

• StudScan mode: Up to ¾ in. (19 mm)
• DeepScan® mode: Up to 1 ½ in. (38 mm)

WireWarning® Position Accuracy*

• Typically 90-250 V at 50-60Hz within 6 in. (152 mm) of a hot unshielded wire in drywall

WireWarning® Depth*

• In typical wall with Romex® wiring, wire can be detected up to 2 in. (51 mm) deep

*NOTE: Sensing depth and accuracy can vary due to moisture, content of materials, wall texture, paint, etc. Not recommended for use on lath and plaster.

This product is covered by Zircon’s Limited Lifetime Warranty for the United States and Canada.
