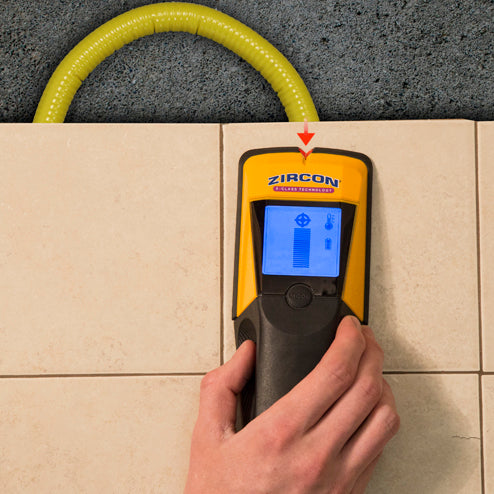

• Thermal mode detects actively heated ½ in. (13 mm) diameter water-filled plastic pipes up to 2 in. (50 mm) deep

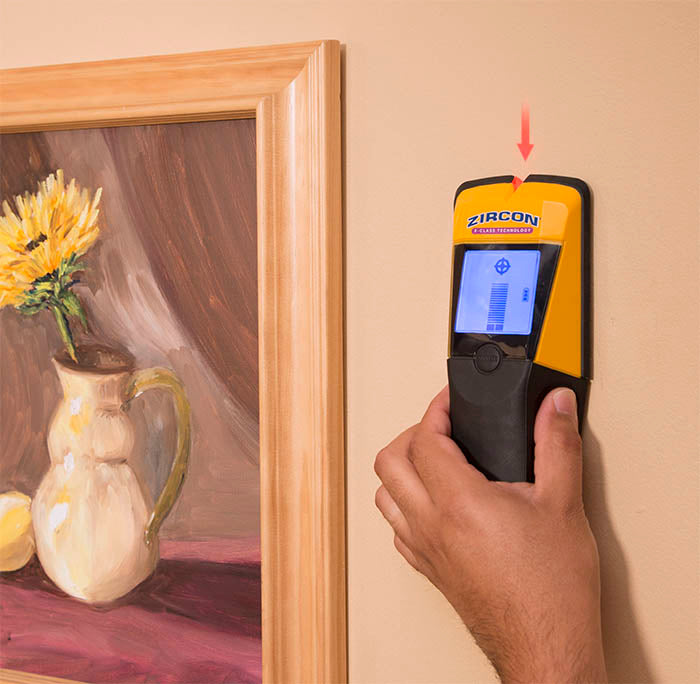

• StudScan mode locates the edges and center of wood and metal studs up to ¾ in. (19 mm) deep
• DeepScan® mode doubles the scanning depth to 2 in. (50 mm)
• AC Scan locates live, unshielded, AC electrical wire up to 2 in. (50 mm) deep
• Low battery indicator for optimum performance*
• Arrow-shaped SpotLite® Pointer indicates detected target
• Water and dust resistant

• Battery Type 3 x AAA (LR03 [not included])
• Dimensions 8.20 in. H x 3.17 in. W x 1.64 in. D (208 mm x 81 mm x 42 mm)
• Weight 8.0 oz. (228 g) without battery

Detectable Material

• Plastic Pipes (with warm water)
• Live AC Wires
• Wood Studs
• Metal Studs

Accuracy +/–

• 0.20 in. (5 mm)

Ultra High Density

Self Compensating

Auto Power Off 3 min.

Splash and water resistant, not waterproof

*NOTE: USE ONLY IN ACCORDANCE WITH MULTISCANNER® x85 INSTRUCTIONS.

Sensing depth and accuracy can vary due to moisture, content of materials, wall texture, paint, etc.

Not recommended for use on lath and plaster.

Indoor use only.

This product is covered by Zircon’s Limited Lifetime Warranty for the United States and Canada.
