• Stud Scan mode locates the edges and center of wood or metal studs up to 3/4 in. (19 mm) deep

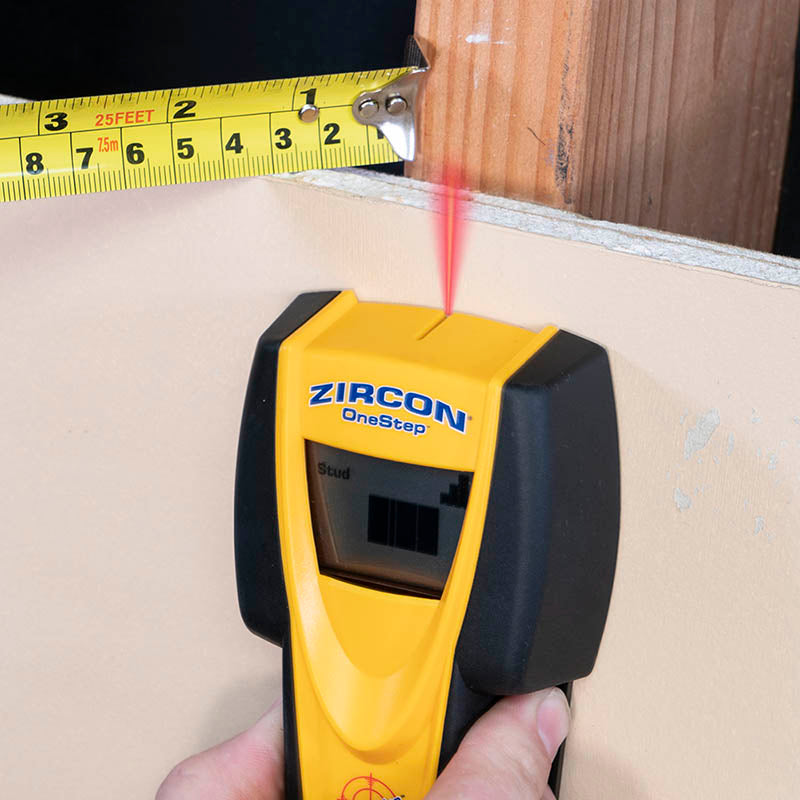

• DeepScan® mode doubles the scanning depth to 1 1/2 in. (38 mm)

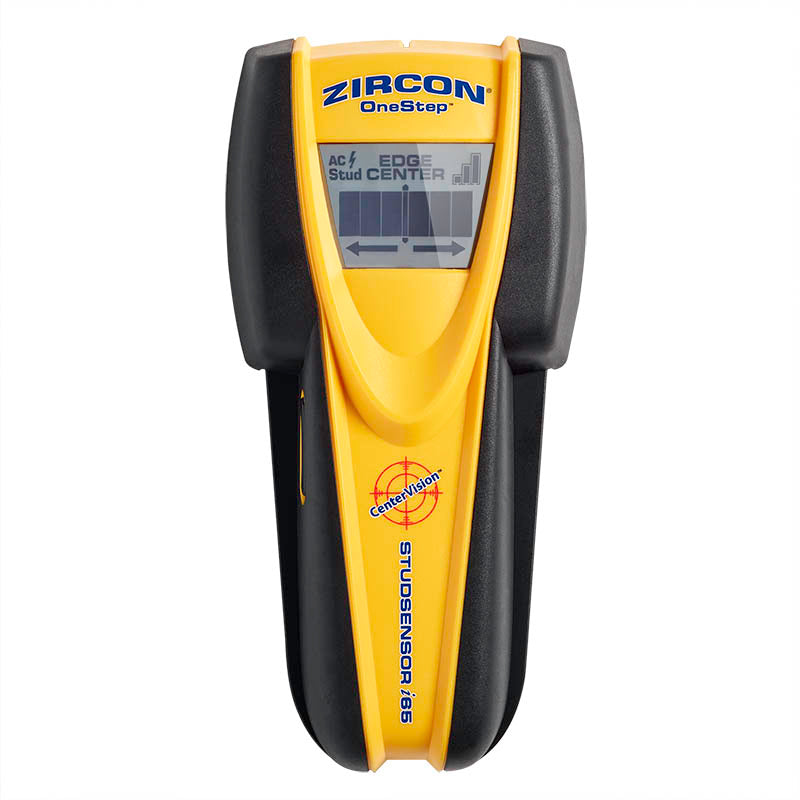

• LCD display indicates direction, edges, and center of studs.
• Patented SpotLite® Pointing System and audio tone signals when the stud center is reached.
• WireWarning® detection indicates the presence of live, unshielded electrical wiring up to 2 in. (51 mm) deep
• ACT™ (Auto Correcting Technology) automatically corrects common calibration errors, such as when scanning begins over a stud

• Battery Type 9V alkaline (not included)
• Dimensions 6.21 in. H x 3.04 in. W x 1.32 in. D (158 mm x 77 mm x 34 mm)
• Weight 5.7 oz. (161 g) without battery
• Splash and water resistant, not waterproof
• Indoor use only

Position Accuracy*

• Up to a depth of 3⁄4 in. (19 mm): Typically within 1⁄8 in. (3 mm) for center, 3⁄16 in. (5 mm) for edge
• Up to a depth of 1½ in. (38 mm): Typically within 1⁄4 in. (6 mm) for center

Depth*

• StudScan mode: Up to 3⁄4 in. (19 mm)
  DeepScan® mode: Up to 11⁄2 in. (38 mm)

WireWarning® Position Accuracy*

• Typically 90-250 V at 50-60 Hz within 6 in. (152 mm) of a hot unshielded wire in drywall

WireWarning® Depth*

• In typical wall with Romex™ wiring, wire can be detected up to 2 in. (51 mm) deep

*NOTE: See tool's instructions for more information.
Sensing depth and accuracy can vary due to moisture,
content of materials, wall texture, paint, etc.

This product is covered by Zircon’s Limited Lifetime Warranty for the United States and Canada.
